Most of the extant mtDNA boundaries in South and Southwest Asia were likely shaped during the initial settlement of Eurasia by anatomically modern humans

  • Mait Metspalu1Email author,

    Affiliated with

    • Toomas Kivisild1,

      Affiliated with

      • Ene Metspalu1,

        Affiliated with

        • Jüri Parik1,

          Affiliated with

          • Georgi Hudjashov1,

            Affiliated with

            • Katrin Kaldma1,

              Affiliated with

              • Piia Serk1,

                Affiliated with

                • Monika Karmin1,

                  Affiliated with

                  • Doron M Behar2,

                    Affiliated with

                    • M Thomas P Gilbert6,

                      Affiliated with

                      • Phillip Endicott7,

                        Affiliated with

                        • Sarabjit Mastana4,

                          Affiliated with

                          • Surinder S Papiha5,

                            Affiliated with

                            • Karl Skorecki2,

                              Affiliated with

                              • Antonio Torroni3 and

                                Affiliated with

                                • Richard Villems1

                                  Affiliated with

                                  BMC Genetics20045:26

                                  DOI: 10.1186/1471-2156-5-26

                                  Received: 07 May 2004

                                  Accepted: 31 August 2004

                                  Published: 31 August 2004

                                  Abstract

                                  Background

                                  Recent advances in the understanding of the maternal and paternal heritage of south and southwest Asian populations have highlighted their role in the colonization of Eurasia by anatomically modern humans. Further understanding requires a deeper insight into the topology of the branches of the Indian mtDNA phylogenetic tree, which should be contextualized within the phylogeography of the neighboring regional mtDNA variation. Accordingly, we have analyzed mtDNA control and coding region variation in 796 Indian (including both tribal and caste populations from different parts of India) and 436 Iranian mtDNAs. The results were integrated and analyzed together with published data from South, Southeast Asia and West Eurasia.

                                  Results

                                  Four new Indian-specific haplogroup M sub-clades were defined. These, in combination with two previously described haplogroups, encompass approximately one third of the haplogroup M mtDNAs in India. Their phylogeography and spread among different linguistic phyla and social strata was investigated in detail. Furthermore, the analysis of the Iranian mtDNA pool revealed patterns of limited reciprocal gene flow between Iran and the Indian sub-continent and allowed the identification of different assemblies of shared mtDNA sub-clades.

                                  Conclusions

                                  Since the initial peopling of South and West Asia by anatomically modern humans, when this region may well have provided the initial settlers who colonized much of the rest of Eurasia, the gene flow in and out of India of the maternally transmitted mtDNA has been surprisingly limited. Specifically, our analysis of the mtDNA haplogroups, which are shared between Indian and Iranian populations and exhibit coalescence ages corresponding to around the early Upper Paleolithic, indicates that they are present in India largely as Indian-specific sub-lineages. In contrast, other ancient Indian-specific variants of M and R are very rare outside the sub-continent.

                                  Background

                                  Two mtDNA macro-haplogroups (M and N) that arose from the African haplogroup L3 encompass virtually all mtDNAs outside Africa [14]. The phylogenetic node N (including R) has spread its branches all over Eurasia, in contrast to haplogroup M, which is found in Eastern Eurasia but is virtually absent in Europe. The numerous branches of N are, however, generally segregated to either the eastern (e.g. A, B [5], Y [6], R9 [7] or western (e.g. N1 [8, 9], N2 (comprising of W and its sister-clade identified by [10]), TJ, HV, U [11]) Eurasian-specific pools.

                                  The majority of Indian mtDNAs belong to macro-haplogroup M [8, 1221]. While the topology of the M sub-haplogroups that are common in mainland East Asia (M7, M8 (including C, Z), M9 (including E), D, G [7, 22, 23]) and in Africa (M1 [24]) is established in detail, the internal haplogroup structure of M in India has remained largely undefined. We have previously demonstrated that transitions at nps. 477G, 1780, 8502 and 16319 designate Indian-specific haplogroup M2, the most frequent M clade in India [15]. Another Indian-specific M clade supported by HVS-I variation as well as coding region markers, is M6 [15]. Haplogroups M3, M4 and M5 have been discriminated preliminarily by their characteristic HVS-I mutations [19], but since their defining positions, 16126, 16311, and 16129, respectively, are phylogenetically unstable [25, 26], it is unlikely that the proposed haplogroups are monophyletic. Most numerous sub-groups of macro-haplogroup N in India are the Indian-specific variants of the phylogenetic node R including haplogroups R5, R6, U2(a, b, c) [8, 13, 27].

                                  The overwhelming majority of the Iranian mtDNAs have been shown to lie in the West Eurasian domain of the global human mtDNA pool [27, 28]. Here we focus on the analysis of mtDNA lineages that are shared between Indians and Iranians and bear signals of pre-Holocene expansion in the region.

                                  India congregates four linguistic domains (Indo-European, Dravidic, Austro-Asiatic and Tibeto-Burman) that occupy non-random spheres of the geographic distribution of its populations. The majority of the recent studies based on mtDNA variation have, in contrast to some [21], provided evidence that linguistic groups of India do not represent genetically homogeneous units and are not, therefore, traceable to different immigration waves from distinct sources [8, 13, 19]. The complexity that arises in defining populations and groups of populations in India based on genetic and cultural criteria has been recently demonstrated in South Indian tribal and caste populations. The combined data from mtDNA, Y-chromosome and autosomal genes indicated that the tribes and castes derive largely from the same genetic heritage of Late Pleistocene southern and southwestern Asians, and have received limited gene flow from external sources since the Holocene [15]. Similar results were obtained by Cordaux et al. [29], who demonstrated that caste and tribal groups exhibit similar levels of molecular variance. However, genetic distances indicated that the Tibeto-Burman speaking tribal populations (from eastern India) were more closely related to East Asians than to other Indians [29]. This is consistent with an earlier suggestion placing the origin of these tribal groups east of India – in Tibet and Myanmar [30].

                                  In this study, we have analyzed the mtDNA variation in a sample of 796 Indians and 436 Iranians (Table 1), and combined the results with previously published data from the same geographic area. We also compared the mtDNA variation in India and Iran with that of Europe, China, and Thailand. The overall aim was to improve our understanding of the origins and composition of the Indian and Iranian gene pools and to determine the nature and the extent of gene flow between these regions. Through the analyses of the genetic variation of extant Southwest and South Asian populations we took an endeavor to envisage the exodus of anatomically modern humans from Africa.
                                  Table 1

                                  Characteristics of the Indian and Iranian population samples whose mtDNA variation has been determined in the course of this study.

                                  INDIA



                                  State / Region

                                  Socio-cultural affiliation

                                  Linguistic affiliation

                                  Population

                                  Code

                                  n

                                  N



                                  West Bengal

                                  Caste

                                  Indo-European

                                  Mixed caste people

                                  Ben

                                  50

                                  80 Million



                                  Uttar Pradesh

                                  Tribe

                                  Indo-European

                                  Bhoksa

                                  Bho

                                  5

                                  32,000



                                  Kerala

                                  Caste

                                  Indo-European

                                  Mixed caste people from Cochin

                                  Co

                                  55

                                  600,000



                                  Kerala

                                  -a

                                  Indo-European

                                  Cochin Jews

                                  CoJ

                                  45

                                  5,000

                                  (in Israel)

                                  Gujarat

                                  Caste

                                  Indo-European

                                  Mixed caste people

                                  Guj

                                  53

                                  50 Million



                                  Himachal

                                  Tribe

                                  Tibeto-Burman

                                  Kanet

                                  Kan

                                  37

                                  33,000



                                  Maharashtra

                                  Caste

                                  Indo-European

                                  Konkanastha Brahmin

                                  Kon

                                  58

                                  N/A



                                  West Bengal

                                  Caste

                                  Indo-European

                                  Kurmi

                                  Kur

                                  55

                                  N/A



                                  West Bengal

                                  Tribe

                                  Austro-Asiatic

                                  Lodha

                                  Lod

                                  56

                                  59,000



                                  Sri Lanka

                                  Caste

                                  Dravidic

                                  Moor

                                  Mo

                                  50

                                  3.4 Million



                                  Maharashtra

                                  -a

                                  Indo-European

                                  Parsi

                                  Par

                                  55

                                  76,000



                                  Punjab

                                  Caste

                                  Indo-European

                                  Mixed caste people

                                  Pun

                                  109

                                  24 Million



                                  Rajasthan

                                  Caste

                                  Indo-European

                                  Rajput

                                  Raj

                                  35

                                  5 Million

                                  (in Rajasthan)

                                  Sri Lanka

                                  Caste

                                  Indo-European

                                  Sinhalese

                                  Sin

                                  82

                                  14.6 Million



                                  Uttar Pradesh

                                  Tribe

                                  Indo-European

                                  Tharu

                                  Tha

                                  26

                                  96,000

                                  (in India)

                                  Uttar Pradesh

                                  Caste

                                  Indo-European

                                  Uttar Pradesh Brahmin

                                  UPb

                                  25

                                  2.5 Million



                                  total



                                  796



                                  IRAN



                                  northwest



                                  226



                                  southwest



                                  138



                                  northeast



                                  30



                                  southeast



                                  6



                                  central



                                  36



                                  total



                                  Indo-European

                                  Iranian

                                  IR

                                  436

                                  ca. 68 Million



                                  a For some analyzes these populations where grouped with the caste populations. (see Table 1 in the Supplementary Material for the complete set of studied populations including those whose mtDNA variation was previously published)

                                  Results and Discussion

                                  Geographic distribution of macro-clades M and N in India

                                  We found haplogroup M ubiquitous at almost 58% among the caste, and 72% among the tribal populations (Table 2), which is largely consistent with previous reports [8, 1221]. Our results indicate that the frequency distribution of haplogroup M varies across different Indian regions by a significant cline towards the south and the east (see Figure 4 for Spatial Autocorrelation Analysis (SAA) p < 0.05). The variation among caste populations climbs from approximately 40% in Gujarat and (Indian-) Punjab to 65% in the southern states, and peaks at over 70% in West Bengal (Table 2). We observed a similar geographic pattern among tribal populations, where the frequency varied from just over 50% in the northern states of Punjab and Himachal Pradesh, increased to 70%–80% in the southern states, and peaked at 86% in West Bengal (Table 8, see Additional file 3).
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig4_HTML.jpg

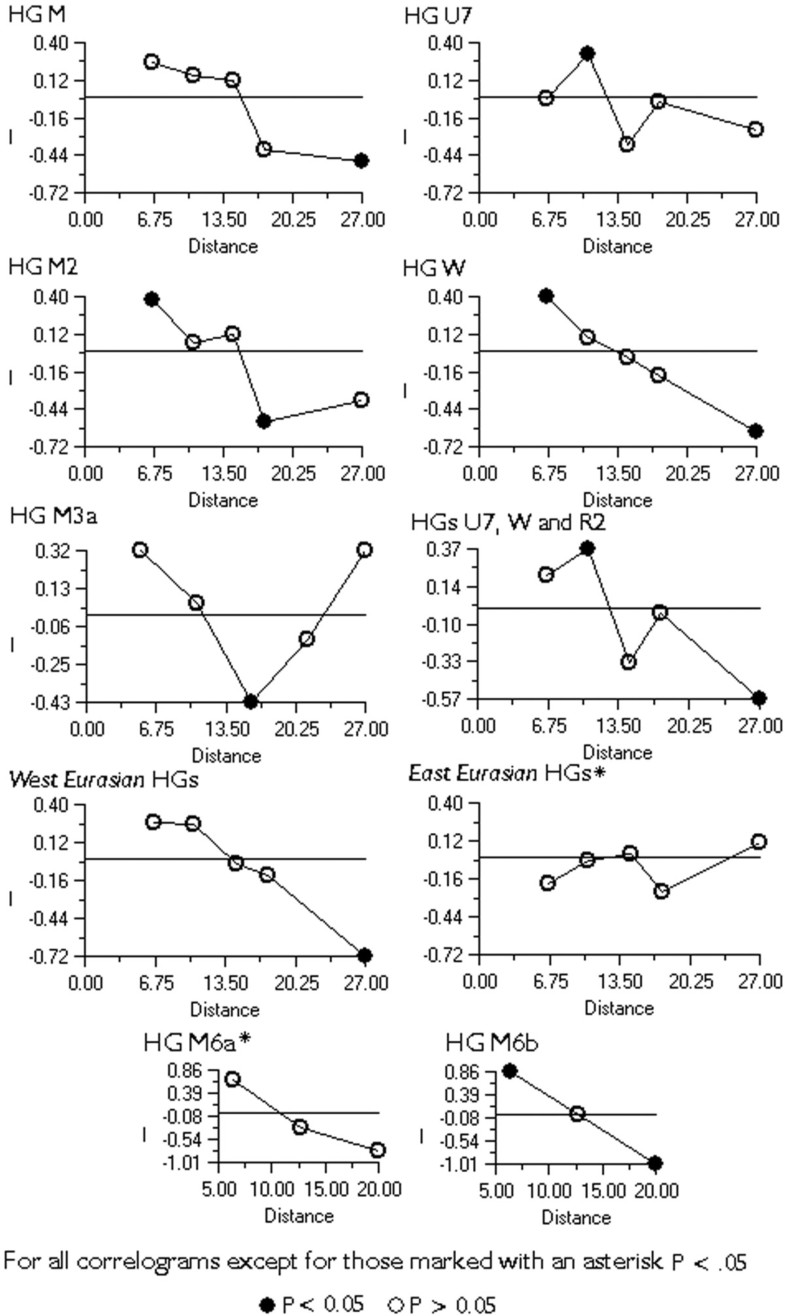

                                  Figure 4

                                  Spatial Autocorrelation Analyses Correlograms of different haplogroups and haplogroup groupings frequencies in South Asia. In the case of haplogroup M3a some datasets had to be excluded because lack of resolution (see footenote for Table 3. for detailes). There was no significant cline in the frequencies of haplogroup R2. In the case of haplogroups M6a and M6b only the potential cline along the Bay of Bengal is investigated. Therefor the number of distance classes is reduced to three.

                                  Table 2

                                  Geographic, linguistic and socio-cultural distribution of major Indian-specific mtDNA haplogroups



                                  HAPLOGROUP FREQUENCY (95% CR FOR PROPORTION)



                                  n

                                  Mb

                                  M2

                                  M3a

                                  M4a

                                  M6

                                  M18

                                  M25

                                  Rc

                                  R5

                                  R6

                                  U2id

                                  R2; U7; W

                                  EEe

                                  WEf

                                  India

                                  2544g

                                  65 (63.1–66.8)

                                  6.3 (5.4–7.3)

                                  2.2 (1.7–2.9)

                                  0.6 (.4–1)

                                  2.9 (2.3–3.6)

                                  2.1 (1.6–2.8)

                                  0.9 (.6–1.4)

                                  11.4 (10.2–12.7)

                                  2.2 (1.7–2.8)

                                  1.3 (.9–1.8)

                                  5.3 (4.5–6.2)

                                  3.4 (2.7–4.2)

                                  10.5 (9.4–11.8)

                                  12.1 (10.9–13.4)

                                  Iran

                                  436

                                  5.3 (3.6–7.8)

                                  0 (0–.8)

                                  0.5 (.1–1.6)

                                  0 (0–.8)

                                  0 (0–.8)

                                  0.2 (.1–1.3)

                                  0 (0–.8)

                                  3.2 (1.9–5.3)

                                  0.9 (.4–2.3)

                                  0 (0–.8)

                                  0.2 (.1–1.3)

                                  13.3 (10.4–16.8)

                                  3.9 (2.5–6.2)

                                  90.8 (87.7–93.2)

                                  Socio-cultural affiliation (Indian data only)

                                  Caste population

                                  1204

                                  57.8 (54.9–60.5)

                                  5.1 (4–6.5)

                                  4.2 (3.2–5.5)

                                  1.1 (.6–1.8)

                                  3 (2.2–4.1)

                                  1.4 (.9–2.2)

                                  1.4 (.9–2.2)

                                  14.1 (12.3–16.2)

                                  3.3 (2.5–4.5)

                                  1.7 (1.1–2.5)

                                  7.8 (6.4–9.5)

                                  4.8 (3.7–6.2)

                                  4 (3–5.2)

                                  17.1 (15.1–19.3)

                                  Tribal population

                                  1332

                                  71.5 (69–73.8)

                                  7.5 (6.2–9)

                                  0.5 (.2–1)

                                  0.2 (0–.5)

                                  2.7 (2–3.7)

                                  2.7 (2–3.7)

                                  0.5 (.2–1)

                                  8.9 (7.5–10.6)

                                  1.2 (.7–1.9)

                                  0.9 (.5–1.6)

                                  3 (2.2–4.1)

                                  2 (1.4–2.9)

                                  16.5 (14.6–18.6)

                                  7.5 (6.2–9)

                                  Brahmins & Kshatriyas

                                  313

                                  60.1 (54.5–65.3)

                                  1.9 (.9–4.1)

                                  5.1 (3.2–8.1)

                                  1 (.3–2.8)

                                  0.6 (.2–2.3)

                                  1 (.3–2.8)

                                  2.2 (1.1–4.5)

                                  14.7 (11.2–19.1)

                                  4.5 (2.7–7.4)

                                  1.3 (.5–3.2)

                                  6.4 (4.2–9.7)

                                  6.1 (3.9–9.3)

                                  3.5 (2–6.2)

                                  17.6 (13.8–22.2)

                                  Other Castesh

                                  517

                                  61.5 (57.2–65.6)

                                  6.2 (4.4–8.6)

                                  4.6 (3.1–6.8)

                                  1.2 (.5–2.5)

                                  2.9 (1.8–4.7)

                                  2.1 (1.2–3.8)

                                  0.8 (.3–2)

                                  12.6 (10–15.7)

                                  2.3 (1.3–4)

                                  1.5 (.8–3)

                                  7.4 (5.4–9.9)

                                  3.9 (2.5–5.9)

                                  1.7 (.1–1.4)

                                  16.6 (1.2–3.8)

                                  Language groups of India

                                  Indo-European

                                  963

                                  57.5 (54.4–60.6)

                                  3.8 (2.8–5.3)

                                  4.5 (3.3–6)

                                  1.0 (.6–1.9)

                                  2.7 (1.9–3.9)

                                  1.1 (.6–2)

                                  1.6 (1–2.6)

                                  7.8 (6.3–9.7)

                                  2.5 (1.7–3.7)

                                  1.6 (1–2.6)

                                  7.1 (5.6–8.9)

                                  6.9 (5.4–8.6)

                                  4.0 (3–5.5)

                                  19.9 (17.5–22.6)

                                  Dravidic

                                  1063

                                  70.0 (67.2–72.7)

                                  10.8 (9.1–12.8)

                                  1.2 (.7–2.1)

                                  0.5 (.2–1.1)

                                  4.0 (2.9–5.3)

                                  1.4 (.9–2.3)

                                  0.5 (.2–1.1)

                                  8.9 (7.4–10.8)

                                  2.7 (1.9–3.9)

                                  1.4 (.9–2.3)

                                  5.9 (4.7–7.5)

                                  1.2 (.7–2.1)

                                  3.0 (2.1–4.2)

                                  8.8 (7.3–10.7)

                                  Tibeto-Burman

                                  249

                                  59.8 (53.6–65.7)

                                  0 (0–1.5)

                                  0.4 (.1–2.2)

                                  0 (0–1.5)

                                  1.6 (.7–4)

                                  1.2 (.4–3.5)

                                  1.2 (.4–3.5)

                                  0.8 (.2–2.9)

                                  1.2 (.4–3.5)

                                  0 (0–1.5)

                                  0.8 (.2–2.9)

                                  2.0 (.9–4.6)

                                  61.4 (55.3–67.3)

                                  3.2 (1.7–6.2)

                                  Austro-Asiatic (Mundari)

                                  90

                                  86.7 (78.1–92.2)

                                  2.2 (.7–7.7)

                                  0 (0–4)

                                  0 (0–4)

                                  0 (0–4)

                                  26.7 (18.6–36.7)

                                  0 (0–4)

                                  4.4 (1.8–10.9)

                                  0 (0–4)

                                  1.1 (.3–6)

                                  1.1 (.3–6)

                                  1.1 (.3–6)

                                  0 (0–4)

                                  1.1 (.3–6)

                                  Indo-European i

                                  250

                                  66.4 (60.3–72)

                                  8.0 (5.3–12)

                                  0.4 (.1–2.2)

                                  0.8 (.2–2.8)

                                  4.8 (2.8–8.2)

                                  1.6 (.6–4)

                                  0.4 (.1–2.2)

                                  8.8 (5.9–13)

                                  2.0 (.9–4.6)

                                  1.6 (.6–4)

                                  6.4 (4–10.1)

                                  4.0 (2.2–7.2)

                                  1.2 (.4–3.5)

                                  13.6 (9.9–18.4)

                                  Indo-European j

                                  713

                                  54.4 (50.7–58)

                                  2.4 (1.5–3.8)

                                  5.9 (4.4–7.9)

                                  1.1 (.6–2.2)

                                  2.0 (1.2–3.3)

                                  1.0 (.5–2)

                                  2.0 (1.2–3.3)

                                  7.4 (5.7–9.6)

                                  2.7 (1.7–4.1)

                                  1.5 (.9–2.7)

                                  7.3 (5.6–9.4)

                                  7.9 (6.1–10.1)

                                  5.0 (3.7–6.9)

                                  22.2 (19.3–25.4)

                                  Indian States and Bangladesh (excluding tribal populations) k

                                  Andhra Pradesh

                                  245

                                  65.3 (59.1–71.0)

                                  7.7 (5–11.8)

                                  2.8 (1.4–5.7)

                                  1.6 (.6–4.1)

                                  3.3 (1.7–6.4)

                                  4.1 (2.3–7.4)

                                  0 (0–1.5)

                                  18 (13.7–23.2)

                                  4.1 (2.3–7.4)

                                  1.2 (.4–3.5)

                                  5.3 (3.2–8.9)

                                  2.4 (1.1–5.2)

                                  1.2 (.4–3.5)

                                  8.9 (6–13.2)

                                  Bangladesh

                                  30

                                  66.67 (48.6–80.8)

                                  9.96 (3.61–25.7)

                                  0 (.08–11.2)

                                  0 (.08–11.2)

                                  3.29 (.78–16.6)

                                  3.29 (.78–16.6)

                                  0 (.08–11.2)

                                  6.67 (2.04–21.4)

                                  0 (.08–11.2)

                                  0 (.08–11.2)

                                  6.67 (2.04–21.4)

                                  3.29 (.78–16.6)

                                  9.96 (3.61–25.7)

                                  6.67 (2.04–21.4)

                                  Gujarat

                                  57

                                  40.4 (28.6–53.4)

                                  5.3 (1.9–14.4)

                                  7 (2.9–16.7)

                                  1.8 (.4–9.2)

                                  1.8 (.4–9.2)

                                  1.8 (.4–9.2)

                                  0 (0–6.2)

                                  17.5 (9.9–29.4)

                                  5.3 (1.9–14.4)

                                  1.8 (.4–9.2)

                                  1.8 (.4–9.2)

                                  17.5 (9.9–29.4)

                                  5.3 (1.9–14.4)

                                  33.3 (22.5–46.3)

                                  Karnataka

                                  47h

                                  55.3 (41.2–68.6)

                                  2.1 (.5–11.1)

                                  2.1 (.5–11.1)

                                  0 (.1–7.4)

                                  0 (.1–7.4)

                                  0 (.1–7.4)

                                  0 (.1–7.4)

                                  19.1 (10.5–32.6)

                                  6.4 (2.3–17.2)

                                  0 (.1–7.4)

                                  10.6 (4.7–22.7)

                                  6.4 (2.3–17.2)

                                  0 (.1–7.4)

                                  14.9 (7.5–27.8)

                                  Kashmir

                                  19

                                  26.3 (11.9–49.1)

                                  0 (.1–16.8)

                                  0 (.1–16.8)

                                  5.3 (1.2–24.9)

                                  10.5 (3.2–31.7)

                                  0 (.1–16.8)

                                  0 (.1–16.8)

                                  10.5 (3.2–31.7)

                                  0 (.1–16.8)

                                  5.3 (1.2–24.9)

                                  10.5 (3.2–31.7)

                                  5.3 (1.2–24.9)

                                  21.1 (8.7–43.7)

                                  31.6 (15.4–54.3)

                                  Kerala

                                  100

                                  54 (44.2–63.5)

                                  4 (1.6–9.8)

                                  0 (0–3.6)

                                  0 (0–3.6)

                                  0 (0–3.6)

                                  0 (0–3.6)

                                  5 (2.2–11.2)

                                  25 (17.6–34.3)

                                  9 (4.9–16.2)

                                  1 (.2–5.4)

                                  7 (3.5–13.8)

                                  1 (.2–5.4)

                                  4 (1.6–9.8)

                                  11 (6.3–18.7)

                                  Maharashtra

                                  117

                                  65 (55.9–73)

                                  3.4 (1.4–8.5)

                                  11.1 (6.6–18.1)

                                  0.9 (.2–4.6)

                                  0 (0–3.1)

                                  0 (0–3.1)

                                  5.1 (2.4–10.7)

                                  6.8 (3.5–12.9)

                                  0.9 (.2–4.6)

                                  0.9 (.2–4.6)

                                  4.3 (1.9–9.6)

                                  4.3 (1.9–9.6)

                                  5.1 (2.4–10.7)

                                  23.1 (16.4–31.5)

                                  Punjab

                                  150

                                  36 (28.8–44)

                                  0.7 (.2–3.6)

                                  4.7 (2.3–9.3)

                                  1.3 (.4–4.7)

                                  0.7 (.2–3.6)

                                  0 (0–2.4)

                                  2.7 (1.1–6.6)

                                  11.3 (7.2–17.4)

                                  0.7 (.2–3.6)

                                  0.7 (.2–3.6)

                                  7.3 (4.2–12.7)

                                  14 (9.4–20.5)

                                  5.3 (2.8–10.2)

                                  42.7 (35–50.7)

                                  Rajasthan

                                  36

                                  69.4 (53–82)

                                  0 (.1–9.5)

                                  13.9 (6.2–28.8)

                                  0 (.1–9.5)

                                  0 (.1–9.5)

                                  5.6 (1.7–18.2)

                                  0 (.1–9.5)

                                  22.2 (11.8–38.2)

                                  5.6 (1.7–18.2)

                                  2.8 (.7–14.2)

                                  2.8 (.7–14.2)

                                  5.6 (1.7–18.2)

                                  0 (.1–9.5)

                                  2.8 (.7–14.2)

                                  Sri Lanka

                                  132

                                  57.6 (49–65.7)

                                  6.8 (3.7–12.5)

                                  1.5 (.5–5.3)

                                  1.5 (.5–5.3)

                                  1.5 (.5–5.3)

                                  0.8 (.2–4.1)

                                  0 (0–2.7)

                                  12.9 (8.2–19.7)

                                  0.8 (.2–4.1)

                                  3 (1.2–7.5)

                                  12.1 (7.6–18.8)

                                  2.3 (.8–6.5)

                                  2.3 (.8–6.5)

                                  15.2 (10–22.3)

                                  Tamil Nadu

                                  51

                                  64.7 (50.9–76.4)

                                  5.9 (2.1–15.9)

                                  3.9 (1.2–13.2)

                                  2 (.5–10.3)

                                  2 (.5–10.3)

                                  2 (.5–10.3)

                                  0 (0–6.8)

                                  11.8 (5.6–23.4)

                                  0 (0–6.8)

                                  3.9 (1.2–13.2)

                                  2 (.5–10.3)

                                  3.9 (1.2–13.2)

                                  23.5 (14–36.8)

                                  7.8 (3.2–18.5)

                                  Uttar Pradesh

                                  98

                                  52 (42.2–61.7)

                                  1 (.2–5.5)

                                  8.2 (4.2–15.3)

                                  1 (.2–5.5)

                                  0 (0–3.7)

                                  2 (.6–7.1)

                                  1 (.2–5.5)

                                  11.2 (6.4–19)

                                  3.1 (1.1–8.6)

                                  2 (.6–7.1)

                                  15.3 (9.5–23.8)

                                  3.1 (1.1–8.6)

                                  4.1 (1.7–10)

                                  13.3 (8–21.4)

                                  West Bengal

                                  106

                                  71.7 (62.5–79.4)

                                  3.8 (1.5–9.3)

                                  1.9 (.6–6.6)

                                  0 (0–3.4)

                                  5.7 (2.7–11.8)

                                  0 (0–3.4)

                                  0.9 (.2–5.1)

                                  12.3 (7.3–19.9)

                                  6.6 (3.3–13)

                                  2.8 (1–8)

                                  6.6 (3.3–13)

                                  0.9 (.2–5.1)

                                  0.9 (.2–5.1)

                                  7.5 (3.9–14.2)

                                  a a See Tables 8–13 (additional files 3–7, 9) for frequencies of other haplogroups including breakdown of R2, U7 and W

                                  b Includes all haplogroup M sub-haplogroups

                                  c Includes sub-haplogroups R2, R5, R6 and R10

                                  d Composite of haplogroups U2a, U2b and U2c [27]

                                  e Composite of haplogroups A, B, D, G, M7, M8 (including C and Z), M9 (including E), M10, N9 (including Y), R9 (including F)

                                  f Composite of haplogroups HV, TJ, X, N1, N2 and U (except U2i)

                                  g Caste and tribal populations plus 8 Siddi [49] who belong to neither groupings

                                  h Datasets where caste affiliation was not determined (undefined/mixed caste population), Scheduled Caste populations (e.g. the Mukri, see text for explanation) and data from [3] (dataset of 27 haplogroup M samples) are excluded.

                                  i Indo-European speakers of southern India (Tamil Nadu, Kerala, Karnataka, Andhra Pradesh and Sri Lanka)

                                  j Indo-European speakers of northern India (States other than listed in the previous footnote)

                                  k The sum of the presented caste populations sample sizes is different from that given in the third row of the current table because of the addition of the Bangladeshi (n = 30) and extraction of the Mukri (n = 42), Orissa (n = 2) and Bihar (n = 2) data.

                                  With the exception of the diverse set of largely Indian-specific R lineages, the most frequent mtDNA haplogroup in India that derives from the phylogenetic node N is haplogroup W [13]. The frequency peak of haplogroup W is 5% in the northwestern states – Gujarat, Punjab and Kashmir. Elsewhere in India its frequency is very low (from 0 to 0.9%) (Table 2) forming a significant spatial cline (Figure 4).

                                  At 15% among the caste and 8% among the tribal populations haplogroup U is the most frequent sub-clade of R in India (Table 12, see Additional file 7). Approximately one half of the U mtDNAs in India belong to the Indian-specific branches of haplogroup U2 (U2i: U2a, U2b and U2c) [13, 27] (Table 2). They are present throughout India without a clear geographical cline (Figure 2, panel U2i, SAA p > 0.05). However, the spread of another subset of U, haplogroup U7 [13], is similar to that of haplogroup W, peaking at 12% and 9% in Gujarat and Punjab, respectively (Table 11, see Additional file 6). The frequency of U7 is also high in neighboring Pakistan (6%) and particularly in Iran (9%) (Table 9, see Additional file 4).
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig2_HTML.jpg
                                  Figure 2

                                  The spatial distribution of Indian-specific mtDNA haplogroups (U2, M4a, M18 and M25) and their sub-haplogroups. In the case of haplogroup M25 some datasets had to be excluded because the discrimination between M* and the respective subgroup was not possible on the basis of the HVS-I data alone (see footnote of Table 3). For other details see legend to Figure 1.

                                  MtDNA haplogroups in Iran

                                  Over 90% of the mtDNAs found in Iran belong to haplogroups HV, TJ, U, N1, N2 and X, commonly found in West Eurasia (Table 2). In contrast to Europe, where H is predominant among the mtDNA haplogroups, in Iran the frequency of haplogroup U (29%) is higher than that of haplogroup H (17%) (Table 9, see Additional file 4). This difference accounts, at least partly for the presence in Iran of U sub-groups, such as U7 (9.4%), that are virtually absent in Europe.

                                  Compared to India, haplogroup M frequency in Iran is marginally low (5.3%) and there are no distinguished Iranian-specific sub-clades of haplogroup M. All Iranian haplogroup M lineages can be seen as derived from other regional variants of the haplogroup: eleven show affiliation to haplogroup M lineages found in India, twelve in East and Central Asia (D, G, and M8) and one in northeast Africa (M1).

                                  Indian-specific (R5 and Indian-specific M and U2 variants) and East Asian-specific (A, B and East Asian-specific M subgroups) mtDNAs, both, make up less than 4% of the Iranian mtDNA pool. We used Turkey (88.8 ± 4.0%) as the third parental population for evaluating the relative proportions of admixture from India (2.2 ± 1.7%) and China (9.1 ± 4.1%) into Iran. Therefore we can conclude that historic gene flow from India to Iran has been very limited.

                                  The package of the most ancient mtDNA haplogroups in India

                                  Approximately one tenth of the Indian haplogroup M mtDNAs fall into its major sub-clade M2, which is defined by the motif 477G-1780-8502-16319 [15]. M2 can be further subdivided into haplogroups M2a (transitions at nps 5252 and 8369) and M2b [15]. Haplogroup M2 and its two major sub-clades reveal coalescence times of 50 to 70 thousand years (Table 3). Due to the increased frequency towards the southern part of India (Figure 1, panel M2, SAA p < 0.05 Figure 4), M2 is significantly (p < 0.05) more frequent among the Dravidic speakers than among the Indo-European speakers who are spread mostly in the northern regions of India (Table 2). It is more plausible that geography rather than linguistics is behind this pattern, because the frequency of M2 amongst the Indo-European speaking populations in southern India is significantly higher than that in the north, while there is no significant difference between Dravidic and Indo-European speaking populations from the same geographic region (Table 2). It is also notable that the frequency of M2 among the Brahmins and the Kshatriyas of Andhra Pradesh (CR 3.3 – 19.2%) is not significantly (p > 0.05) different from that among the other castes or the tribal populations of the region (CR: 5–12.9%, 11.2–18.3%, respectively). On the other hand, none of the 159 Brahmins and Kshatriyas from the northern states of India (Punjab, Rajasthan, Uttar Pradesh and West Bengal) belong to M2 while the frequency reaches nearly 3% (CR: 1.6–4.6%) among the other castes and tribal populations of the region.
                                  Table 3

                                  Indian-specific sub-clades of mtDNA haplogroups M and R.



                                  DIAGNOSTIC CODING REGION MARKERS

                                  ANCESTRAL HVS-I MOTIF

                                  COALESCENCE (years)

                                  ρ/nδ2 a

                                  COALESCENCE b (years)

                                  ρ/nδ2 a

                                  nc

                                  Proportion (95% CR)

                                  M2

                                  477G-1780-8502

                                  16223–16319

                                  70,600 ± 21,000

                                  0.02

                                  70,100 ± 20,700

                                  0.04

                                  166

                                  6.1 (5.3–7.1)

                                     M2a

                                  5252–8369

                                  16223-16319-16270

                                  48,300 ± 20,100

                                  0.03

                                  46,700 ± 22,800

                                  0.06

                                  79

                                  2.9 (2.3–3.6)

                                     M2b



                                  16223-16319-16274

                                  54,800 ± 25,000

                                  0.02

                                  57,600 ± 22,300

                                  0.06

                                  87

                                  3.2 (2.6–3.9)

                                  M3a

                                  4580

                                  16126–16223

                                  17,300 ± 7,400

                                  0.10

                                  17,300 ± 7,600

                                  0.11

                                  62

                                  3.0f (2.4 – 3.8)

                                  M4a

                                  6620–7859

                                  16223–16311

                                  19,200 ± 9,000

                                  0.23

                                  19,100 ± 9,000

                                  0.25

                                  21

                                  0.8 (0.5–1.2)

                                  M6

                                  3537

                                  16223-16231-16362

                                  33,000 ± 13,900

                                  0.04

                                  30,000 ± 13,600

                                  0.08

                                  79

                                  2.9 (2.3–3.6)

                                     M6a



                                  16223-16231-16356-16362

                                  19,100 ± 7,600

                                  0.17

                                  15,700 ± 8,100 d

                                  0.54

                                  37

                                  1.4 (1.0–1.9)

                                     M6b

                                  5585

                                  16188-16223-16231-16362

                                  6,000 ± 2,100

                                  0.73

                                  12,100 ± 4,500

                                  0,82

                                  37

                                  1.4 (1.0–1.9)

                                  M18



                                  16223-16318T

                                  9,400 ± 3,200

                                  0.31

                                  17,100 ± 4,700

                                  0.61

                                  58

                                  2.1 (1.7–2.7)

                                  M25

                                  15928

                                  16223–16304

                                  19,400 ± 7,200

                                  0.30

                                  22,300 ± 8,600

                                  0.32

                                  25

                                  1.0g (0.7 – 1.5)

                                  R2e

                                  4216

                                  16071

                                  40,400 ± 14,300

                                  0.45

                                  52,500 ± 21,700

                                  0.5

                                  8

                                  0.3 (0.2–0.6)

                                  R5

                                  8594

                                  16266–16304

                                  66,100 ± 22,000

                                  0.04

                                  69,800 ± 24,800

                                  0.05

                                  58

                                  2.1 (1.7–2.7)

                                  R6

                                  -12282 AluI

                                  16129–16362

                                  30,000 ± 11,000

                                  0.14

                                  30,300 ± 11,600

                                  0.19

                                  35

                                  1.3 (0.9–1.8)

                                  Total



                                  2719



                                  a Efficiency of the sample for coalescence calculation (Saillard et al. 2000)

                                  b Calculated without the tribal populations

                                  c In the Indian subcontinent (a total of 2719 mtDNAs)

                                  d Excluding also the scheduled cast of Mukri

                                  e R2 is spread also in the Near East, Central Asia and Volga basin

                                  f Excluding the datasets where M3* / M3a discrimination was impossible: 246 subjects from Andhra Pradesh (Bamshad et al. 1998); 382 Pushtoon, Koragas, Naga, Yerava, Pardhi, Paniya Adi, Andh, Apatani and Soligas (Cordaux et al. 2003); 35 Kota and Kurumba (Roychoudhury et al. 2001)

                                  g Excluding the datasets where M* / M25 discrimination was impossible: 246 subjects from Andhra Pradesh (Bamshad et al. 1998); 39 Thoti and 29 subjects from Bangladesh (Cordaux et al. 2003); 12 Muria (Roychoudhury et al. 2001)

                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig1_HTML.jpg
                                  Figure 1

                                  The spatial distribution of Indian-specific mtDNA haplogroups (M2, M6 and M3) and their sub-haplogroups. Maps of South and Southwest Asia depicting the spatial frequency distribution of various Indian-specific mtDNA haplogroups. For India, the tribal populations were excluded (see 'Methods' for explanation). The published (full reference in Table 6, see Additional file 1) and new data were averaged to the resolution of states in India, geographic regions in Iran and provinces in China and Thailand. Numbers adjacent to the data points indicate sample sizes. In the case of haplogroup M3a some datasets had to be excluded because the discrimination between M* and the respective subgroup was not possible on the basis of the HVS-I data alone (see footnote of Table 3).

                                  We found that R5, which is defined by transitions at nps 8594 [27], 16266 and 16304, is the second most frequent sub-clade of R in India after haplogroup U. The coalescence age estimate for R5 was similar to that of M2 (Table 3), whereas individual boughs within the R5 limb showed expansions from ca. 20,000 ybp to ca. 50,000 ybp (Figure 12, see Additional file 8). Our data indicate that this diverse and ancient haplogroup is present over most of India (Figure 3, panel R5). Though absent among the Austro- Asiatic tribal groups, R5 is spread across the other language boundaries. In contrast to M2, R5 is more frequent among the caste (CR: 2.5–4.5%) than among the tribal populations (CR: 0.7–1.9%) (Table 2).
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig3_HTML.jpg

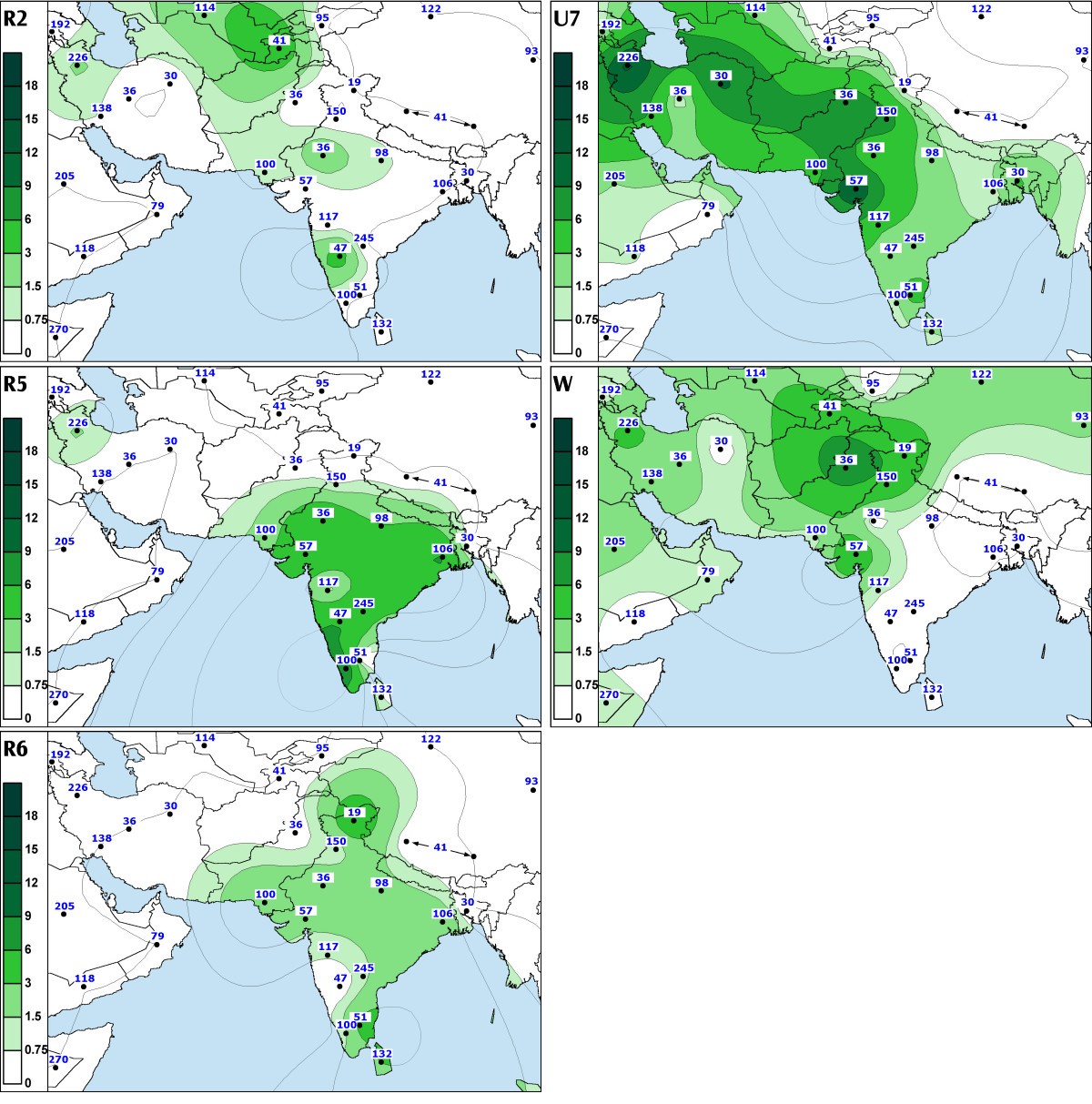

                                  Figure 3

                                  The spatial distribution of Indian-specific mtDNA haplogroups (R5 and R6) and West Eurasian-specific U7, W and R2 in South and southwest Asia. For other details see legend to Figure 1.

                                  Together with the Indian-specific sub-clades of haplogroup U2 [13, 27], haplogroups M2 and R5 can be discriminated as a package of Indian-specific mtDNA clades harboring extremely deep coalescence times (around 50,000 – 70,000 ybp). Together they constitute nearly 15% of the Indian mtDNAs. Importantly, these haplogroups are virtually absent elsewhere in Eurasia [13, 15], this study]. Because most of Indian varieties of haplogroup M are still unclassified (M*), this package is likely to be extended when more mtDNA coding region information will become available for the M* lineages in India.

                                  The geographic distribution of the M2, R5 and U2i package seems to be rather uniform in the context of the Indian-specific maternal lineages (SAA p > 0.05). When excluding the mtDNAs that are likely to have arrived more recently from West or East Eurasia, the share of the package among the caste populations in northern and southern India is roughly similar (CR: 16.1–24.5% and 19.5–26.0 %, respectively). However, in accordance with expectations from the individual haplogroup distributions, the tribal groups speaking Austro-Asiatic and Tibeto-Burman languages are characterized by considerably lower values (CR: 3.9–14.1% and 3.8–15.1%, respectively).

                                  The quest for finding the origin of haplogroup M and a plausible scenario for the peopling of Eurasia

                                  Based on the high frequency and diversity of haplogroup M in India and elsewhere in Asia, some authors have suggested (versus [3]) that M may have arisen in Southwest Asia [16, 17, 31]. Finding M1 or a lineage ancestral to M1 in India, could help to explain the presence of M1 in Africa as a result of a back migration from India. Yet, to date this has not been achieved [15], this study). Therefore, one cannot rule out the still most parsimonious scenario that haplogroup M arose in East Africa [3]. Furthermore, the lack of L3 lineages other than M and N (indeed, L3M and L3N) in India is more consistent with the African launch of haplogroup M. On the other hand, one also observes that: i) M1 is the only variant of haplogroup M found in Africa; ii) M1 has a fairly restricted phylogeography in Africa, barely penetrating into sub-Saharan populations, being found predominantly in association with the Afro-Asiatic linguistic phylum – a finding that appears to be inconsistent with the distribution of sub-clades of haplogroups L3 and L2 that have similar time depths. That, plus the presence of M1 without accompanying L lineages in the Caucasus [32] and [our unpublished data], leaves the question about the origin of haplogroup M still open.

                                  In contrast to haplogroup M, ancient sub-clades of haplogroup N are spread both east and west of India as well as within India itself. Several migration scenarios involving multiple "out of Africa" events punctuated by space, time or both, could be invoked to explain the phylogeography of these mtDNA haplogroups. Yet, using the parsimony criterion it can be argued that only a single early migration that brought ancestral lineages, M and N (with the latter having already given rise to R), to South Asia could account for the extant mtDNA phylogeography in Eurasia [15]. The finding of several largely South and West Asian-specific sub-clades (H, L, R2, and F*) of the major Eurasian Y chromosomal haplogroups F and K also supports this scenario [15]. From South and West Asia the colonization would have sprung both east and west as region-specific mtDNA and Y chromosomal sub-clades appeared both in West- and East-Eurasia as well as in India itself (Figure 5). However, not all the West-Eurasian Y-chromosomal founder haplogroups are present in India. Haplogroup E, for example, was possibly carried to Europe and Western Asia later via the Levantine corridor [33]. Similarly, a Late Upper Palaeolithic origin and spread of mtDNA haplogroup X from Northeast Africa and Middle East has been suggested lately [34].
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig5_HTML.jpg
                                  Figure 5

                                  Peopling of Eurasia. Map of Eurasia and northeastern Africa depicting the peopling of Eurasia as inferred from the extant mtDNA phylogeny. The bold black arrow indicates the possible "coastal" route of colonization of Eurasia by anatomically modern humans (ca. 60,000 – 80,000 ybp.). This "Southern Coastal Route" is suggested by the phylogeography of mtDNA haplogroup M, the virtual absence of which in the Near East and Southwest Asia undermines the likelihood of the initial colonization of Eurasia taking a route north around the Red Sea. Therefore, the initial split between West and East Eurasian mtDNAs is postulated between the Indus Valley and Southwest Asia. Spheres depict expansion zones where, after the initial (coastal) peopling of the continent, local branches of the mtDNA tree (haplogroups given in the spheres) arose (ca. 40,000 – 60,000 ybp), and from where they where further carried into the interior of the continent (thinner black arrows). Admixture between the expansion zones has been surprisingly limited ever since. We note that while there is no obvious need to introduce the "northern route" – from northeast Africa over Sinai to the Near East – to explain the initial colonization of Eurasia, the spread of some mtDNA and Y-chromosomal haplogroups implies that the "northern" passage might have been used in a later period [33, 34].

                                  The improved structure of autochthonous Indian mtDNA clades

                                  Nearly a third of Indian mtDNAs belonging to haplogroup M could be assigned to its existing boughs and limbs with the current knowledge of the mtDNA coding region polymorphisms (Table 9, see Additional file 4). It is likely that the unclassified Indian M* and R* mtDNAs are also to a large extent autochthonous because neither the East nor West Eurasian mtDNA pools include such lineages at notable frequencies.

                                  Haplogroup M6 (Figure 6) is primarily found in the Indus Valley and on the western shores of the Bay of Bengal where its sub-clades M6a and M6b are concentrated towards the southwest and the northeast, respectively (Figure 1, panel M6, M6b cline is significant SAA p < 0.05, Figure 4). The highest frequencies of M6a and M6b were found amongst the Mukri scheduled caste from Karnataka (17%) and in Kashmir (10%), respectively. The Mukri form an endogamous group of no more than 10,000 individuals, who dwell on an area less than 2000 km2 [35]. That, together with the observation that all the sixteen M6 sequences found among the Mukri belong to a single haplotype, suggests that genetic drift has played a major role in the demographic history of the Mukri. The statistical significance of the high M6 frequency in Kashmir is undermined by the small sample size (19 individuals), which results in the very wide error margins for the frequency estimate (CR: 3.2–31.7%).
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig6_HTML.jpg
                                  Figure 6

                                  Network of HVS-I haplotypes belonging to haplogroup M6. Circle areas are proportional to haplotype frequencies. Variant bases of the HVS-I are numbered as in (Anderson et al. 1981) minus 16,000 and shown along links between haplotypes. Character changes are specified only for transversions. Underlined samples are those in which the diagnostic coding region markers (3537 and 5585) were assayed by either RFLP analysis (M6: -3537 AluI; M6b: -5584 AluI) or direct sequencing. Sample codes are as in Table 6 (see Additional file 1). Coalescence estimates marked with an asterisk are calculated excluding tribal populations (see Materials and Methods for explanation). The coalescence estimate marked with two asterisks is calculated without the data on tribal and scheduled caste (the Mukri) populations (see text for details).

                                  Different geographic distributions characterize the sub-clades of M3 and M4 that we define by mtDNA coding region markers (Table 3, Figures 7 and 8). Both M3a and M4a show time depths around 20,000 ybp. However, while M4a is sparsely spread in most of India with no obvious geographical cline (Figure 2, panel M4a, SAA p > 0.05), the spread of M3a is concentrated into northwestern India (Figure 1, panel M3a, SAA p < 0.05), suggesting that the region may have been the ancestral source. The frequency of M3a is at its highest amongst the Parsees of Mumbai (22%). Given the low M3a diversity amongst the Parsees – the twelve M3a mtDNAs fall into the two most common haplotypes (Figure 7) – the high frequency is likely a result of admixture and subsequent founder events. On the other hand, it is intriguing that, despite its low frequency, M3a penetrates into central and southwestern Iran (Figure 1, panel M3a) – the historic origin of the Zoroastrian Parsees. In addition to the Parsees we found M3a at high frequencies amongst the Brahmins of Uttar Pradesh (16%) and the Rajputs of Rajasthan (14%) (Table 10, see Additional file 5).
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig7_HTML.jpg

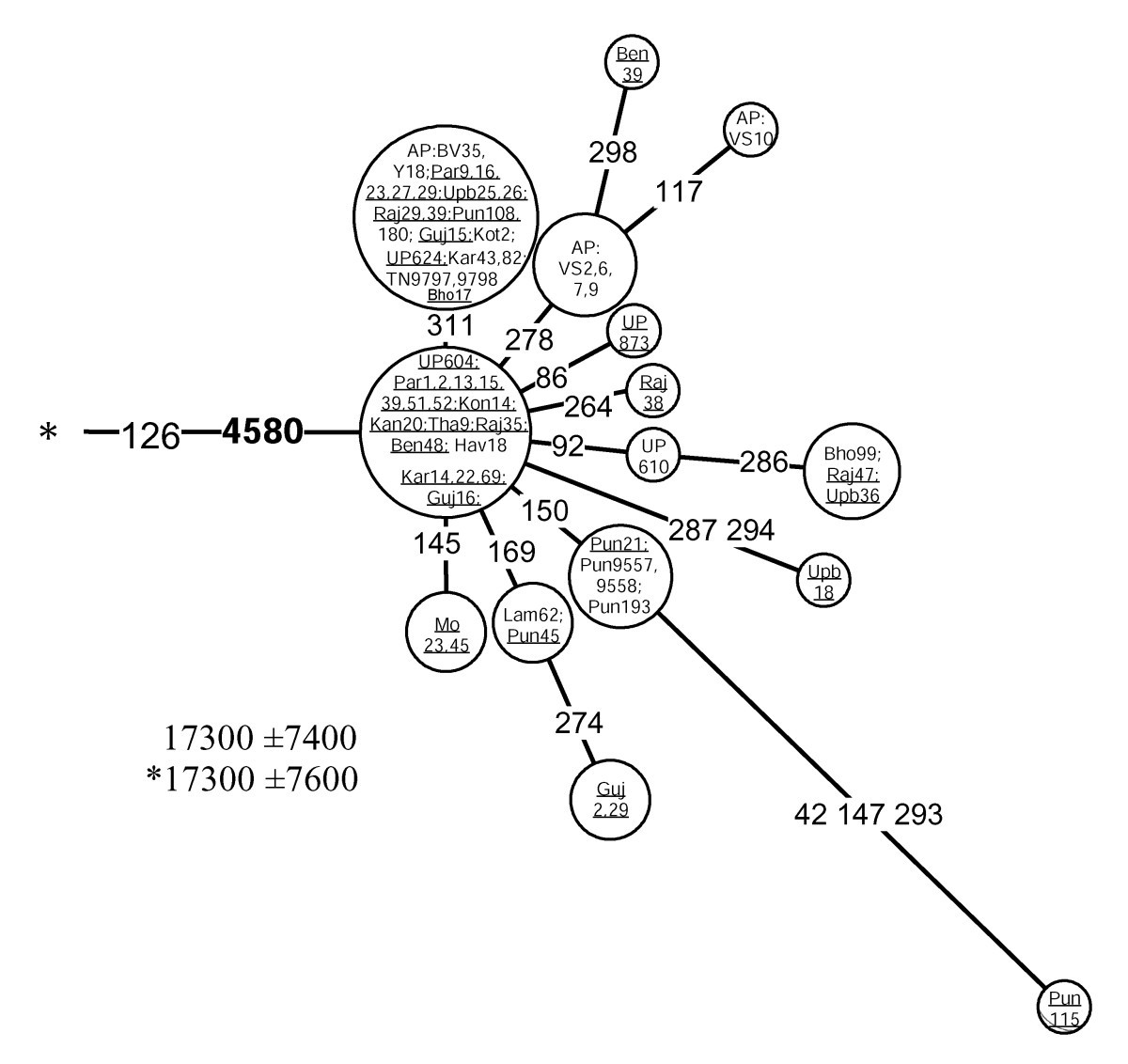

                                  Figure 7

                                  A network of haplogroup M3a haplotypes. Underlined samples are those in which the diagnostic coding region marker (4580) of M3a was assayed by either RFLP analysis (-4577 NlaIII) or direct sequencing. For other details, see the legend to Figure 6.

                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig8_HTML.jpg

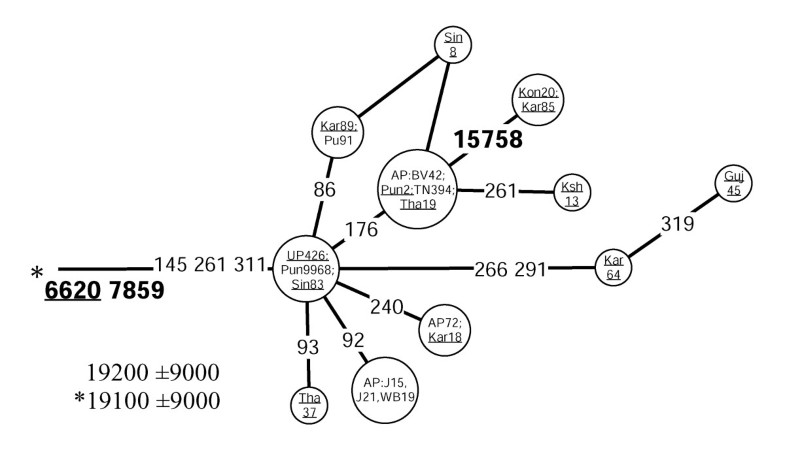

                                  Figure 8

                                  Network of HVS-I haplotypes belonging to haplogroup M4a. Underlined samples are those in which the diagnostic coding region marker (6620) of M4a was assayed by either RFLP analysis (+6618 MboI) or direct sequencing. For other details, see the legend to Figure 6.

                                  Awaiting further information from complete mtDNA sequences, we defined haplogroup M18 by using the transversion at np 16318. This star-like cluster (Figure 9) is spread at low frequencies across India, with the exceptions of the very north and the coast of the Arabian Sea (Figure 2, panel M18). The high incidence (33%) of the M18 nodal haplotype among the Austro-Asiatic speaking Lodha of West Bengal (Table 10, see Additional file 5) suggests a possible founder effect in this population. This explains the nearly two-fold difference between the coalescence estimates for this cluster calculated with and without the tribal data (Table 3).
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig9_HTML.jpg

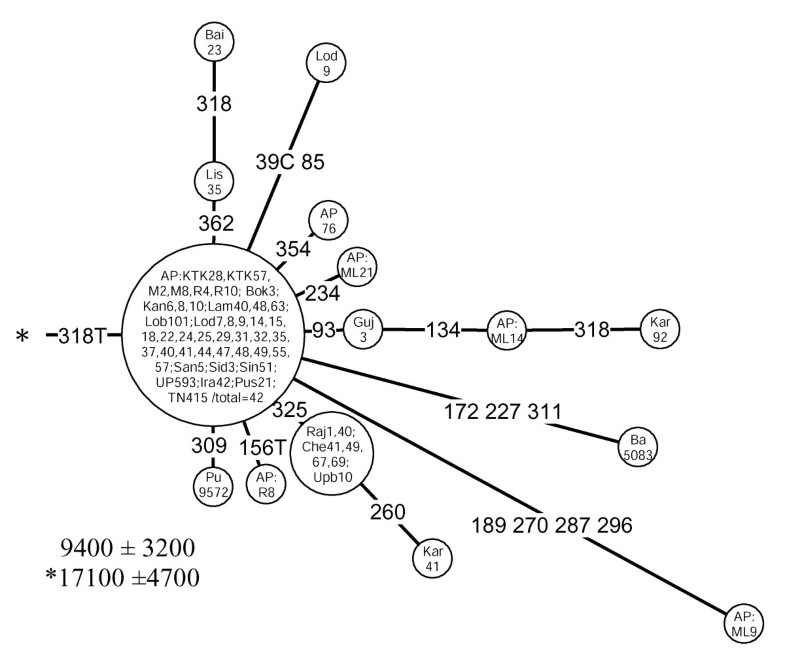

                                  Figure 9

                                  Network of HVS-I haplotypes belonging to haplogroup M18. For other details, see the legend to Figure 6

                                  The G to A transition at np 15928 has been spotted on different branches (e. g. haplogroups T and M) of the mtDNA phylogeny [3, 36]. Quintana-Murci and colleagues observed this transition within haplogroup M in combination with the HVS-I motif 16048-16129-16223-16390 [27]. None of the mtDNAs in our study which harbor – or stem from – the 16048-16129-16223 motif were positive for the 15928 transition, suggesting an additional occurrence. In addition, we recorded this transition associated with three other HVS-I motifs on the background of haplogroup M (M8-Z: 16185-16223-16260-16298; M*: 16223 and M*: 16086-16223-16335). These occurrences cannot be monophyletic for obvious reasons. Yet, when combined with the transition at np 16304, G15928A roots a star-like subclade of haplogroup M that we tentatively named M25 (Figure 10). In this case, monophylecity is the most parsimonious assumption. This haplogroup is moderately frequent in Kerala and Maharashtra but rather infrequent elsewhere in India (Figure 2, panel M25).
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig10_HTML.jpg

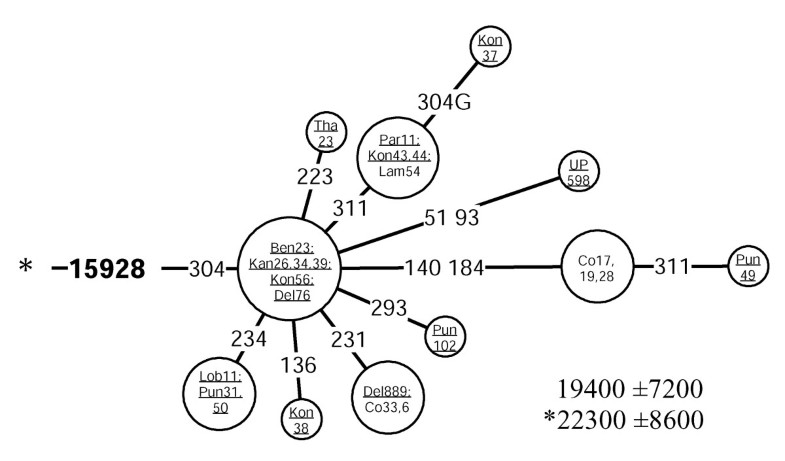

                                  Figure 10

                                  Network of HVS-I haplotypes belonging to haplogroup M25. Underlined samples are those in which the diagnostic coding region marker (15928) of M25 was assayed by either RFLP analysis (-15925 MspI) or direct sequencing. For other details, see the legend to Figure 6.

                                  Coalescence estimates for these Indian-specific mtDNA haplogroups (M3a, M4a, M6, M25 and R6) fall largely between 20,000 and 30,000 ybp. These estimates overlap with those of many West Eurasian-specific (e.g. H, HV, preHV, U3, U4, K, X [9, 34]) and East Eurasian-specific (A, F2, D4, M7c1, M7a1, M8a [7, 22]) mtDNA clades, suggesting a rather synchronic worldwide demographic expansion event in the late Pleistocene, during an interglacial period preceding the LGM.

                                  Several Indian-specific mtDNA clades demonstrate a similar spread-pattern in southern India. We found haplogroups M4a, M6a and M18 in southeastern Tamil Nadu and Andhra Pradesh while they were absent from neighboring Karnataka and Kerala (Figure 1 panel M6a and Figure 2 panels M4a and M18). One possible explanation is that admixture has been facilitated along the coastlines of the Arabian Sea and the Bay of Bengal. On the other hand, because the absolute frequencies of these haplogroups are rather low, it cannot be ruled out that an increase of sample sizes would disrupt the observed spread-pattern.

                                  Were the Austro-Asiatic speaking tribal people the earliest inhabitants of India?

                                  By calculating nucleotide diversities and expansion times (using the method from [37]) for different linguistic groups of India, some previous studies on mtDNA variation have distinguished the Austro-Asiatic speaking tribal groups as the carriers of the genetic legacy of the earliest settlers of the subcontinent [17, 38]. However, because the linguistic groups of India do not cluster into distinct branches of the Indian mtDNA tree [13, 15, 19], this study], calculating the beginning of expansion for those groupings is problematic and likely controversial as well.

                                  Recently, Basu et al. (2003) supported the conclusions of [17, 38] by reporting that the frequency of the ancient haplogroup M2 among the Austro-Asiatic tribal populations is as high as 19%, and that they lack the slightly younger haplogroup M4 (the likely paraphyletic mother-clade of M4a). The authors have regarded the HVS-I transition at np 16319 as sufficient in defining haplogroup M2. This assumption, however, might lead to an overestimation of M2 frequency and age. Indeed, the 16319 transition has arisen several times on the background of other Indian haplogroup M lineages (Table 7, see Additional file 2), more specifically, in mtDNAs lacking the coding region markers that define M2 [15].

                                  Although two out of the four M2 sequences reported by Basu et al. (2003) among the Lodha, Mundas and Santals (HVS-I sequences originally published by [17]) do harbor the characteristic M2a HVS-I motif (16223-16270-16274-16319-16352), without information from the coding region it is not clear whether the other two sequences (HVS-I motifs: 16092-16179-16223-16289-16294-16319 and 16147G-16172-16223-16319) represent novel M2 sub-clades (because these sequences cannot be affiliated with M2a or M2b) or derive from two independent branches of haplogroup M where 16319 transition has arisen recurrently. HVS-I motif 16147G-16172-16223, for example, is commonly associated with haplogroup N1a. Since sequence data on the five M2s among the Austro-Asiatic speaking tribe Ho, reported by Basu et al. (2003), have not been made available in the publication, we cannot rely on their haplogroup classification. Thus, we are left with one Munda and one Santal mtDNA belonging to haplogroup M2. They make up just 5% of the Austro-Asiatic tribal sample of 37 subjects (excluding the ten Ho). Interestingly, we found no instances of haplogroup M2 among the 56 Lodhas analyzed in this study. Consequently, when excluding the recurrences of the 16319 transition on the background of other sequence motifs, the frequency of M2 among the Austro-Asiatic speaking tribal groups from West Bengal in the combined dataset (Table 7, see Additional file 2) is significantly reduced to about 2%. The corrected value is comparable to the M2 frequency (>3%) in tribal populations speaking Indo-European languages of Punjab and Uttar Pradesh, but is significantly lower than its frequency (>14%) among the Dravidic-speaking tribal groups of Andhra Pradesh (Table 8, see Additional file 3).

                                  Language families present today in India, such as Indo-European, Dravidic and Austro-Asiatic, are all much younger than the majority of indigenous mtDNA lineages found among their present-day speakers at high frequencies (see Additional file 9). It would make it highly speculative to infer, from the extant mtDNA pools of their speakers, whether one of the listed above linguistically defined group in India should be considered more "autochthonous" than any other in respect of its presence in the subcontinent.

                                  Additionally, we note that some recent linguistic and archaeological evidence place the spread of the Austro-Asiatic languages in the Neolithic, in conjunction with the dispersal of rice cultivation from the Yangtze River basin [39]. If this were the case, it would imply that the arrival of this linguistic phylum in India was not associated with female gene flow.

                                  Gene flow from West Eurasia

                                  Broadly, the average proportion of mtDNAs from West Eurasia among Indian caste populations is 17% (Table 2). In the western States of India and in Pakistan their share is greater, reaching over 30% in Kashmir and Gujarat, nearly 40% in Indian Punjab, and peaking, expectedly, at approximately 50% in Pakistan (Table 11, see Additional file 6, Figure 11, panel A). These frequencies demonstrate a general decline (SAA p < 0.05 Figure 4) towards the south (23%, 11% and 15% in Maharashtra, Kerala and Sri Lanka, respectively) and even more so towards the east of India (13% in Uttar Pradesh and around 7% in West Bengal and Bangladesh). The low (<3%) frequency of the western Eurasian mtDNAs in Rajasthan may be in part a statistical artifact due to the limited sample size of 35 Rajputs.
                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Fig11_HTML.jpg

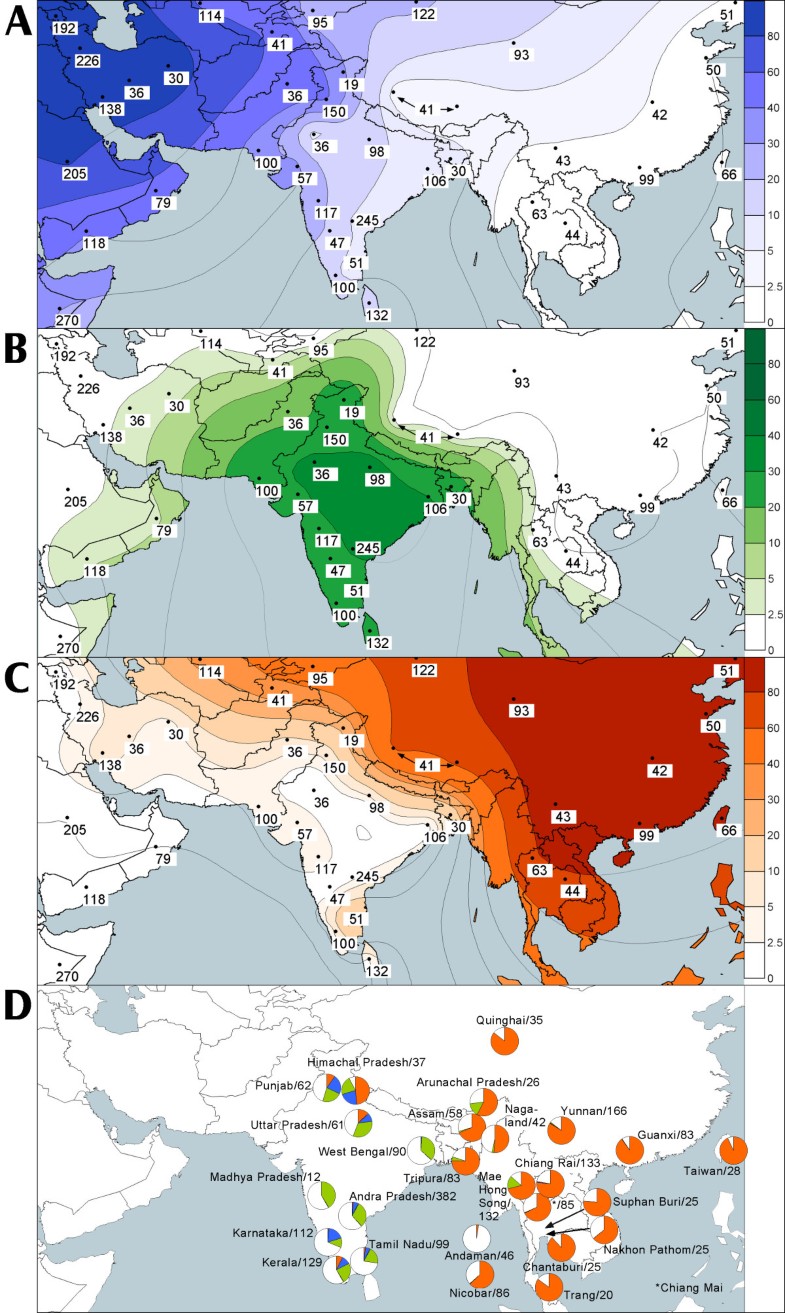

                                  Figure 11

                                  The segregation of West Eurasian, East Eurasian and South Asian mtDNA pools. Partial map of Eurasia illustrating the spatial frequency distribution of mtDNA haplogroups native to West Eurasia (panel A), South Asia (panel B) and East Eurasia (panel C). Data points represent states in India, geographic divisions in Iran and provinces in China and Thailand. Numbers adjacent to the data points indicate the applicable sample size. The distribution of West Eurasian-, South Asian- and East Eurasian-specific mtDNA haplogroups amongst the tribal populations of South and Southeast Asia are depicted as pie diagrams on panel D (colors as on panels A, B, and C, while the white color represents unclassified M* and R* mtDNAs). The data on tribal populations was not used for the isofrequency maps of panels A, B and C (see Materials and Methods for explanation).

                                  In comparison to an overall frequency of 17% (CR 15.1–19.3%) among the caste populations, only 7% (CR 6.2 – 9.0%) of the mtDNAs from the tribal groups show affiliation to the West Eurasian haplogroups. The observed difference could be caused by differences in the extent of gene flow from the west to different social layers of the Indian society [19], and/or a more pronounced genetic drift among the tribal groups.

                                  This western Eurasian contribution into the Indian maternal gene pool can be broadly divided into two different components. Over two thirds of the West Eurasian-specific mtDNAs found in India are made up by haplogroups HV, TJ, N1 and West Eurasian-specific branches of haplogroup U. It is likely that these mtDNA haplogroups have been carried to western India both by relatively low-intensity long-lasting admixture at the border regions as well as a consequence of numerous but probably limited migrations during the last 10, 000 ybp [13]. The remaining one third of the West Eurasian-specific mtDNAs found in India is comprised of haplogroups U7, R2 and W showing much deeper time depths in India – approximately forty thousand years before present (Table 4). A large-scale immigration – carrying these haplogroups – could have introduced a substantial fraction of the diversity already present within the putative source areas. This would explain the deep coalescence times of these haplogroups in India, while their actual arrival could have occurred later. Alternatively, the coalescence estimates may indeed reflect a deeper autochthonous history of these mtDNA clades in India. It is worthwhile to stress that while in India the share of U7, R2 and W in the West Eurasian-specific mtDNAs mounts to nearly a third, in Iran it stays below 15%.
                                  Table 4

                                  Coalescence estimates and diversity values for mtDNA haplogroups U7, W and R2 in India, Central Asia, Near and Middle East.



                                  INDIA

                                  NEAR AND MIDDLE EAST

                                  CENTRAL ASIA

                                  HAPLO-GROUP

                                  COALESCENCE (years)

                                  DIVERSITY

                                  COALESCENCE (years)

                                  DIVERSITY

                                  COALESCENCE (years)

                                  DIVERSITY

                                  U7

                                  41,400 ± 15,800

                                  0.941

                                  41,200 ± 14,800

                                  0.91

                                  34,400 ± 15,500

                                  0.941

                                  W

                                  37,900 ± 11,100

                                  0.883

                                  32,000 ± 8,700

                                  0.934

                                  27,400 ± 8,300

                                  0.758

                                  R2

                                  40,400 ± 14,300

                                  0.923

                                  36,100 ± 11,100

                                  0.955

                                  25,200 ± 13,300

                                  0.889

                                  Similarly to HV, TJ, N1, the spread of U7, W and R2 in India is geographically uneven – the three haplogroups are much more frequent in the northwestern states (SAA p < 0.05, Figure 4). Together, they constitute nearly 14% of the maternal gene pool in Indian Punjab, Gujarat and Rajasthan. Their frequency is also high in Iran (13%) and Pakistan (10%) but declines in Central Asia (5%).

                                  Although haplogroup W is not highly frequent in European populations, it is nevertheless quite common [9], reaching the highest frequencies among the central-northern Finns (9% [40]). Yet, it is virtually absent from the Finno-Ugric speaking populations of the Volga basin [41]. In Central Asia the frequency of haplogroup W stays below 2%.

                                  Many European populations are lacking haplogroup U7 [9], but its frequency climbs over 4% in the Near East and up to 5% in Pakistan, reaching nearly 10% level in Iranians (Table 9, see Additional file 4). In India, haplogroup U7 frequency peaks at over 12% in Gujarat, in the westernmost state of India, while for the whole of India its frequency stays around 2%. Expansion times and haplotype diversities for the Indian and Near and Middle Eastern U7 mtDNAs are strikingly similar (Table 4). The possible homeland of this haplogroup spans likely in Gujarat and Iran because from there its frequency declines steeply both to the east and to the west. If the origin were in Iran rather than in India, then its equally high frequency as well as diversity in Gujarat favors a scenario whereby U7 has been introduced to the coastal western India either very early, or by multiple founders. Notably, the overlap of the Indian and Iranian lineages is largely restricted to the ancestral nodes while the coalescence age estimates for the nearly exclusively Indian (16207-16309-16318T) and West Eurasian (16126-16309-16318T) founder HVS-I motifs both yield time depths of about 20,000 to 30,000 ybp.

                                  Haplogroup R2 appears at low frequencies in Near and Middle East and India and is virtually absent elsewhere. The spread of haplogroup R2 in Europe is restricted to a few populations in the Volga basin where it is represented by nodal haplotypes and by a region-specific subclade characterized by the HVS-I motif 16037–16172 [41]. The coalescence estimate of this sub-clade is 11,400 ± 9,000 ybp. However, its wide error range prevents us from drawing any firm conclusions.

                                  To summarize, the West and South Asian phylogeography of haplogroups W, U7 and R2 can be viewed as a genetic continuum that spans from the Near East into India, extending north into Central Asia. The coalescence times of these haplogroups suggest that this continuum took shape somewhere between 30,000 to 50,000 ybp (Table 4), thus falling within the climatically favorable interglacial period. We notice that the extant U7 and W frequencies along the proposed continuum are not uniform. U7 is more predominant in Iran, Pakistan, northwestern India and the Arabian peninsula, while W is more frequent in the western Near-East, Anatolia and the Caucasus. The coalescence ages of the Indian- and Iranian-specific U7 clades suggest that the time-window of this continuum was closed by ca. 20,000 ybp. The inferred extreme aridity of eastern Iran and western India during the last glacial maximum, which is well documented in paleovegetation reconstructions [42] may explain the observed segregation.

                                  It has been suggested that the Jews settled in southwest India on the coast of the Arabian Sea sometime during the early Middle Ages. However, the mtDNA pool of the extant Cochin Jews is overwhelmingly Indian-specific (Table 10, see Additional file 5). We found exact or close matches to the fourteen HVS-I haplotypes observed among the Cochin Jews in other Indian populations. It is not clear whether the Near Eastern mtDNA lineages have been lost or the initial Jewish settlers did not include women.

                                  Gene flow from East Eurasia

                                  The East Eurasian-specific mtDNA haplogroups are less common in India and more sharply geographically segregated than the haplogroups of western Eurasian ancestry (Table 2; Figure 11, panel C). Indian caste populations harbor only about 4% of such mtDNAs, compared to 17% of the West Eurasian ones (Table 2). Elevated frequencies of haplogroups common in eastern Eurasia are observed in Bangladesh (17%) and Indian Kashmir (21%) and may be explained by admixture with the adjacent populations of Tibet and Myanmar (and possibly further east: from China and perhaps Thailand). On the other hand, the high frequencies of East Eurasian-specific mtDNAs found in the southern Indian state of Tamil Nadu (21%) are unexpected when considering their relatively low frequencies (~1%) in West Bengal and Andhra Pradesh. We notice, however, that the haplogroup assignments used here for the Tamil Nadu sample (A4, B4, F1a and M7) (Table 7, see Additional file 2) are based on HVS-I sequences alone [29]. As shown and discussed elsewhere [7], such type of assignment is prone to mistakes.

                                  Two varieties of haplogroup M, D4c and G2a, were recently identified as largely specific to Central Asia [43]. In spite of geographical proximity we did not find these haplogroups in northern or northwestern India. Haplogroup G2a did, though in marginally low frequency, turn up in Iran (CR: 0.1 – 1.6%) and in southern Indian states Andhra Pradesh (CR: 0.3 – 2.9%) and Sri Lanka (CR: 0.2 – 4.1%).

                                  Tibeto-Burman speaking tribal populations of eastern and northern India exhibit the highest frequencies of East Eurasian-specific mtDNA haplogroups. As inferred from the published HVS-I sequences [29], their share sums up to approximately two thirds of mtDNAs among the tribal groups in Assam, Nagaland, Arunachal Pradesh and Tripura, (Table 8, see Additional file 3; Figure 11, panel D). MtDNA haplogroups native to East Eurasia are also highly frequent in the northern states of India, reaching a peak of nearly 50% among the Kanet of Himachal Pradesh. Papiha and colleagues have previously demonstrated through the typing of immunoglobin allotypes that the Tibetan admixture among the regional Kanet groups decreases as the distance from the Tibetan border increases [44]. Thus, mtDNA data are consistent with an ancestral origin of the Tibeto-Burman speaking tribal populations outside (east of) India in the neighboring Tibet and Myanmar [30, 45].

                                  Haplotype sharing between populations

                                  The majority (70%) of the 1136 mtDNA haplotypes found among continental Indians (including Pakistan and Bangladesh) are singletons and 41% of those that occur more than once are restricted to a single population. Only a few haplotypes are shared among five or more populations.

                                  The number of shared haplotypes between pairs of social, linguistic and geographic groups of Indian populations is slightly (but in most cases insignificantly) lower than that between random groups of Indian populations taken for reference (see Materials and Methods). Where the decline of shared haplotypes is significant relative to the reference, it is most probably caused by large differences in the sample sizes of the groups under comparison (Table 5).
                                  Table 5

                                  Proportion of mtDNA haplotype sharing between population groups of South Asia

                                  Group 1

                                  Group 2



                                  pop. group

                                  n

                                  nb

                                  1/2d

                                  pop. group

                                  n

                                  nb

                                  2/1e

                                  nc

                                  Random 1g

                                  1256 ± 215

                                  617 ± 109

                                  .399 – .453

                                  Random 2g

                                  1426 ± 215

                                  643 ± 114

                                  .396 – .447

                                  132 (112 – 154)

                                  Tribals

                                  1197

                                  437

                                  .411 – .467

                                  Castes

                                  1485

                                  806

                                  .324 – .372

                                  107 (90 – 128)

                                  Northern states

                                  1204

                                  647

                                  .277 – .329

                                  Southern states

                                  1478

                                  585

                                  .345 – .394

                                  96 (80 – 116)

                                  Western states

                                  1142

                                  508

                                  .453 – .511

                                  Eastern states

                                  1540

                                  735

                                  .331 – .379

                                  107 (90 – 128)

                                  Dravidians

                                  974

                                  380

                                  .428 – 490

                                  Others

                                  1708

                                  846

                                  .273 – .317

                                  90 (74 – 109)

                                  Indo-Europeans

                                  1322

                                  686

                                  .328 – .379

                                  Others

                                  1360

                                  556

                                  .393 – .446

                                  106 (89 – 127)

                                  AA tribals

                                  90

                                  35

                                  .552 – .746

                                  Others

                                  2592

                                  1110

                                  .014 – .025

                                  9 (5 – 17)

                                  TB tribals

                                  249

                                  142

                                  .174 – .277

                                  Others

                                  2433

                                  1018

                                  .091 – .115

                                  24 (16 – 35)

                                  Indo-Europeans

                                  1322

                                  686

                                  .295 – .346

                                  Dravidians

                                  974

                                  380

                                  .425 – .487

                                  87 (71 – 106)

                                  Total

                                  2682

                                  1136



                                  340 f

                                  a continental Indians including Pakistan and Bangladesh (excluding Andaman & Nicobar)

                                  b number of haplotypes

                                  c number of shared haplotypes between group 1 and group 2 (95% credible regions; CR)

                                  d CR of the proportion of those haplotypes in group 1 that occur also in group 2

                                  e CR of the proportion of those haplotypes in group 2 that occur also in group 1

                                  f 41% of the shared haplotypes are shared only between members of the same population

                                  g ± indicate SD

                                  An alternative method that assesses the degree of haplotype sharing between populations is to investigate the combined frequency of the shared haplotypes in two population groups. Thus, amongst the northern and the southern population groups the combined frequency of the haplotypes present also in the other group is significantly lower than that which we observed in the case of random groups. This is not surprising because West Eurasian-specific mtDNA haplogroups are rather frequent in northwest India. Because the Indo-European and the Dravidic speakers of India are largely concentrated to the northern and southern parts of the subcontinent, respectively, the differences arising from geographic division of the Indian populations also correspond to these linguistic groupings (Table 5).

                                  Conclusions

                                  Three Indian-specific haplogroups, M2, U2i and R5, which encompass about 15% of the Indian mtDNA pool, exhibit equally deep coalescence ages of about 50,000 – 70,000 years. Thus, their spread can be associated with the initial peopling of South Asia.

                                  Haplogroups U7, W and R2 harbor a number of similar traits. Their overlapping geographic distributions and coalescence times suggest some degree of genetic continuum in the area spanning from the Near and Middle East through northwest India and reaching north into Central Asia. The coalescence estimates for these haplogroups are equally deep (around 30,000 – 50,000 years) in these different regions. That may be a result of either relatively more recent albeit large in scale migrations that brought along most of the diversity or may indeed reflect the region-specific expansions of these haplogroups. The former explanation could be ruled out since it is impossible to envisage a substantial movement of mtDNAs from South Asia that would not include haplogroup M. The same is true for the opposite – the share of U7, W and R2 within the West Eurasian-specific mtDNA haplogroups is two-fold higher in India than it is in Iran. Moreover, the South- and West Asian-specific sub-branches of haplogroup U7 predate the last glacial maximum. Therefore, deep autochthonous history of these haplogroups in the region remains to be the most parsimonious explanation.

                                  Through the use of mtDNA coding region markers, we were able to classify altogether a quarter of the Indian M and R mtDNAs into a number of Indian-specific mtDNA haplogroups, four of which we newly identified. Several of these are characterized by clear patterns in their geographic distribution and/or different frequencies among different socio-cultural groups of India. Additional efforts should be undertaken to identify new coding region markers in order to further improve the classification of Indian mtDNAs. Indeed, much of the information is still hidden by the poor resolution of the Indian mtDNA tree and further piling of HVS-I datasets would add little to deepen our understanding of the demographic history of South and Southwest Asia.

                                  We found that haplogroup M frequency drops abruptly from about 60% in India to about 5% in Iran, marking the western border of the haplogroup M distribution. A similarly sharp border cuts the distribution of Indian-specific mtDNA haplogroups to the east and to the north of the subcontinent. We therefore propose that the initial mtDNA pool established upon the peopling of South Asia has not been replaced but has rather been reshaped in situ by major demographic episodes in the past and garnished by relatively minor events of gene flow both from the West and the East during more recent chapters of the demographic history in the region.

                                  Methods

                                  Subjects

                                  MtDNA sequence variation in a total of 796 Indian samples most of which are held in a collection at Newcastle University [46] was analyzed. The samples cover a wide geographical range that spans from Himachal Pradesh in the north, Sri Lanka in the south, West Bengal in the east and Gujarat in the west (Table 1).

                                  Tribal populations constitute 15% of the total sample size. The Lodha (n = 56) live mostly in the western part of Midnapore district of West Bengal where they are also known as Kheria or Kharia. Their total population size was ~59000 according to the 1981 census. Their language belongs to the Mundari branch of the Austro-Asiatic language family [47]. The Kanet (n = 37) make up two thirds of the ~50000 inhabitants of the Kinnaur district in Himachal Pradesh [48]. Their language belongs to the Himalayan group of the Tibeto-Burman language family [47]. Five Bhoksa and twenty-six Tharu individuals were included in the present study in addition to those from the same populations that we have previously reported [13]. Most of the Tharu live in the Terai areas (a belt of marshy land at the foot of the Himalayas) of Nepal (n = 720000). Approximately 96000 reside in Uttar Pradesh and Uttaranchal, Indian states adjacent to Nepal. Around 32000 Bhoksas live in the lowland areas of Uttaranchal and the neighboring Bijnor district of Uttar Pradesh. Both these tribal groups speak languages belonging to the Indo-European phylum [47].

                                  The non-tribal Indian samples analyzed contained 105 West Bengalis of different caste rank, 58 Konkanastha Brahmins from Bombay, 53 Gujaratis, 50 Moors and 82 Sinhalese from Sri Lanka, 109 Punjabis of different caste rank from the Punjab, 25 Brahmins from Uttar Pradesh, 35 Rajputs from Rajasthan, 55 Parsees from Maharashtra and 100 subjects from Cochin, Kerala (including 45 Jews who have moved to Israel) (Table 1).

                                  The Iranian sample of 436 individuals was collected in different locations mainly from southwestern and northwestern Iran (Table 1).

                                  The new Indian mtDNA sequence data was combined with that previously published on Indian populations [3, 13, 15, 17, 18, 29, 35, 4951] to produce a pooled dataset (n = 2572) in which the tribal populations constitute slightly over 50% (Table 6, see Additional file 1). By including also the data on Iranian and published data on Pakistani [13, 27, 29], Bangladeshi [29], Chinese [7, 22, 5254] and Thai [53, 55, 56] populations (n = 145, 29, 919 and 552, respectively), a dataset of over 4600 samples spanning from West to East Asia (Table 6 and 7, see Additional files 1 and 2) was obtained. In many cases the published data was reanalyzed. Analogy with the newly obtained HVS-I motifs, that were classified into haplogroups using diagnostic markers of the mtDNA coding region, served as basis for haplogroup assignments of the published HVS-I sequences.

                                  An even wider range of data was used for the production of the isofrequency maps: the published data from Armenia (n = 192) [32] and Kyrgyz (n = 95) [57], and the unpublished data from Yemen (n = 118), Oman (n = 79), Saudi Arabia (n = 205), Ethiopia (n = 270), Uzbekistan (n = 114) and Tajikistan (n = 41). Further details about the mtDNA variation of these populations will be published elsewhere.

                                  MtDNA molecular analyses

                                  DNA was extracted using standard phenol-chloroform methods [58]. The hypervariable segment (HVS)-I (between nucleotide positions (np) 16024–16400) of the control region was sequenced in all the 796 Indian and 436 Iranian samples. Preparation of sequencing templates was carried out following Kaessmann et al. [59]. Purified products were sequenced with the DYEnamic™ ET terminator cycle sequencing kit (Amersham Pharmacia Biotech) and analyzed on ABI 377 DNA or Megabace2000 Sequencers. Sequences were aligned and analyzed with the Wisconsin Package (GCG). In addition, informative mtDNA coding region positions [3, 11, 27] were assayed (Table 7, see Additional file 2) in selected individuals from different HVS-I haplotypes to determine haplogroup affiliations.

                                  Data analysis

                                  Median networks [60, 61] were constructed using Network 3.111 and Network 2.10B programs [62] with default settings (r = 2; ε = 0). MtDNA coding region markers were given five times the weight of the HVS-I positions. Coalescence of mtDNA haplogroups and sub-haplogroups was calculated using ρ (the averaged distance to a specified founder haplotype) and a mutation rate of one transition per 20,180 years between nps 16090–16365 [63]. Standard errors for coalescence estimates and efficiency of a sample for coalescence time calculation (ρ/nδ2) were calculated following [64]. Coalescence times were further calculated with the exclusion of tribal populations sequences, yet preserving the cluster topology (coalescence times marked with an asterisk). A more intense genetic drift (particularly founder effects) could introduce a bias into the coalescence time calculation (for example, see below the coalescence time of haplogroup M18 with and without the Lodha sample).

                                  The software kindly provided by Vincent Macaulay was adopted in order to calculate the 95% credible regions (CR) from the posterior distribution of the proportion of a haplogroup/sub-haplogroup in the population.

                                  Haplotype diversity was estimated as

                                  http://static-content.springer.com/image/art%3A10.1186%2F1471-2156-5-26/MediaObjects/12863_2004_Article_198_Equa_HTML.gif

                                  where n is the number of sequences, k the number of distinct haplotypes, and ni number of sequences with one distinct haplotype.

                                  Haplogroup isofrequency maps were generated using the Kriging method in Surfer 7 program of Golden Software. Haplogroup frequencies were averaged over populations from the same state in India, provinces in China and Thailand and geographic divisions in Iran. The data points for Kriging are shown as black dots, while the sample size applicable to the data point is given adjacent to the dot. In relatively small and isolated groups (e.g. tribal groups) random genetic drift might seriously affect the haplogroup frequencies, which may become uninformative when a whole region (e.g. state) is considered (e.g. M18 among the Lodha, see below). Therefore, the tribal data were excluded from the haplogroup isofrequency maps calculation. When illustrating the spread of mtDNA haplogroups native to West Eurasia, East Eurasia and India (Figure 11, panel D) we present these data as pie diagrams. The respective sample size and origin are indicated adjacent to the diagrams.

                                  Spatial autocorrelation analysis was done using the PASSAGE software packet [65, 66]. The correlograms of Moran's I autocorrelation coefficient were calculated using binary weight matrix with five distance classes. Data on tribal populations was not used (see previous paragraph for explanation).

                                  Haplogroup frequencies based admixture proportions were calculated using the ADMIX 2.0 software [67].

                                  Haplotypes were defined as the HVS-I motif combined with the haplogroup label for haplotype analysis. In this way it was possible to discriminate between mtDNAs with identical HVS-I motifs but otherwise known to belong to different haplogroups (e.g. sequences with the CRS motif in HVS-I belonging to haplogroups H or R). In order to assess the results of haplotype sharing analysis between population groups (e.g. tribal and caste populations) we divided the Indian populations ten times randomly into two sets and analyzed the level of haplotype sharing between these sets.

                                  Declarations

                                  Acknowledgments

                                  We thank Lluis Quintana-Murci for providing data prior to publication, Vincent Macaulay for the algorithm for calculating credible regions for haplogroup frequencies, and Jaan Lind and Hille Hilpus for technical assistance. This work was supported by Estonian Science Foundation grants 514 (to RV), 5574 (to TK), 5807 (to EM), the Italian Ministry of the University: Progetti Ricerca Interesse Nazionale 2002 and 2003 (to AT), and European Commission grants ICA1CT20070006 and QLG2-CT-2002-90455 (to RV).

                                  Authors’ Affiliations

                                  (1)
                                  Institute of Molecular and Cell Biology, Tartu University
                                  (2)
                                  Bruce Rappaport Faculty of Medicine and Research Institute, Technion and Rambam Medical Center
                                  (3)
                                  Dipartimento di Genetica e Microbiologia, Università di Pavia
                                  (4)
                                  Department of Human Sciences, Loughborough University
                                  (5)
                                  Department of Human Genetics, University of Newcastle-upon-Tyne
                                  (6)
                                  Ecology and Evolutionary Biology, The University of Arizona
                                  (7)
                                  Henry Wellcome Ancient Biomolecules Centre, Department of Zoology, University of Oxford

                                  References

                                  1. Torroni A, Miller JA, Moore LG, Zamudio S, Zhuang J, Droma T, Wallace DC: Mitochondrial DNA analysis in Tibet: implications for the origin of the Tibetan population and its adaptation to high altitude. Am J Phys Anthropol 1994,93(2):189–199.View ArticlePubMed
                                  2. Chen YS, Torroni A, Excoffier L, Santachiara-Benerecetti AS, Wallace DC: Analysis of mtDNA variation in African populations reveals the most ancient of all human continent-specific haplogroups. Am J Hum Genet 1995,57(1):133–149.PubMed
                                  3. Quintana-Murci L, Semino O, Bandelt H-J, Passarino G, McElreavey K, Santachiara-Benerecetti AS: Genetic evidence of an early exit of Homo sapiens sapiens from Africa through eastern Africa. Nat Genet 1999,23(4):437–441.View ArticlePubMed
                                  4. Alves-Silva J, da Silva Santos M, Guimarães PE, Ferreira AC, Bandelt H-J, Pena SD, Prado VF: The ancestry of Brazilian mtDNA lineages. Am J Hum Genet 2000,67(2):444–461.View ArticlePubMed
                                  5. Torroni A, Schurr TG, Cabell MF, Brown MD, Neel JV, Larsen M, Smith DG, Vullo CM, Wallace DC: Asian affinities and continental radiation of the four founding Native American mtDNAs. Am J Hum Genet 1993,53(3):563–590.PubMed
                                  6. Schurr TG, Sukernik RI, Starikovskaya YB, Wallace DC: Mitochondrial DNA variation in Koryaks and Itel'men: population replacement in the Okhotsk Sea-Bering Sea region during the Neolithic. Am J Phys Anthropol 1999,108(1):1–39.View ArticlePubMed
                                  7. Kivisild T, Tolk H-V, Parik J, Wang Y, Papiha SS, Bandelt H-J, Villems R: The emerging limbs and twigs of the East Asian mtDNA tree. Mol Biol Evol 2002,19(10):1737–1751.PubMed
                                  8. Kivisild T, Kaldma K, Metspalu M, Parik J, Papiha SS, Villems R: The place of the Indian mitochondrial DNA variants in the global network of maternal lineages and the peopling of the Old World. In: Genomic Diversity (Edited by: Papiha SS, Deka R, Chakraborty R). Kluwer Academic/Plenum Publishers 1999, 135–152.
                                  9. Richards M, Macaulay V, Hickey E, Vega E, Sykes B, Guida V, Rengo C, Sellitto D, Cruciani F, Kivisild T, et al.: Tracing European founder lineages in the Near Eastern mtDNA pool. Am J Hum Genet 2000,67(5):1251–1276.PubMed
                                  10. Derbeneva OA, Starikovskaia EB, Volod'ko NV, Wallace DC, Sukernik RI: [Mitochondrial DNA variation in Kets and Nganasans and the early peoples of Northern Eurasia]. Genetika 2002,38(11):1554–1560.PubMed
                                  11. Macaulay VA, Richards MB, Hickey E, Vega E, Cruciani F, Guida V, Scozzari R, Bonné-Tamir B, Sykes B, Torroni A: The emerging tree of West Eurasian mtDNAs: a synthesis of control-region sequences and RFLPs. Am J Hum Genet 1999,64(1):232–249.View ArticlePubMed
                                  12. Ballinger SW, Schurr TG, Torroni A, Gan YY, Hodge JA, Hassan K, Chen KH, Wallace DC: Southeast Asian mitochondrial DNA analysis reveals genetic continuity of ancient mongoloid migrations. Genetics 1992,130(1):139–152.PubMed
                                  13. Kivisild T, Bamshad MJ, Kaldma K, Metspalu M, Metspalu E, Reidla M, Laos S, Parik J, Watkins WS, Dixon ME, et al.: Deep common ancestry of Indian and western-Eurasian mitochondrial DNA lineages. Curr Biol 1999,9(22):1331–1334.View ArticlePubMed
                                  14. Kivisild T, Papiha SS, Rootsi S, Parik J, Kaldma K, Reidla M, Laos S, Metspalu M, Pielberg G, Adojaan M, et al.: An Indian Ancestry: a key for understanding human diversity in Europe and beyond. In: Archaeogenetics: DNA and the population prehistory of Europe (Edited by: Renfrew C, Boyle K). Cambridge: McDonald Institute for Archaeological Research University of Cambridge 2000, 267–279.
                                  15. Kivisild T, Rootsi S, Metspalu M, Mastana S, Kaldma K, Parik J, Metspalu E, Adojaan M, Tolk H-V, Stepanov V, et al.: The genetic heritage of the earliest settlers persists both in Indian tribal and caste populations. Am J Hum Genet 2003, 72:313–332.View ArticlePubMed
                                  16. Roychoudhury S, Roy S, Dey B, Chakraborty M, Roy M, Roy B, Ramesh A, Prabhakaran N, Rani MVU, Vishwanathan HMM, et al.: Fundamental genomic unity of ethnic India is revealed by analysis of mitochondrial DNA. Current Science 2000,79(9):1182–1192.
                                  17. Roychoudhury S, Roy S, Basu A, Banerjee R, Vishwanathan H, Usha Rani MV, Sil SK, Mitra M, Majumder PP: Genomic structures and population histories of linguistically distinct tribal groups of India. Hum Genet 2001,109(3):339–350.View ArticlePubMed
                                  18. Bamshad MJ, Watkins WS, Dixon ME, Jorde LB, Rao BB, Naidu JM, Prasad BV, Rasanayagam A, Hammer MF: Female gene flow stratifies Hindu castes. Nature 1998,395(6703):651–652.View ArticlePubMed
                                  19. Bamshad M, Kivisild T, Watkins WS, Dixon ME, Ricker CE, Rao BB, Naidu JM, Prasad BV, Reddy PG, Rasanayagam A, et al.: Genetic evidence on the origins of Indian caste populations. Genome Res 2001,11(6):994–1004.View ArticlePubMed
                                  20. Passarino G, Semino O, Bernini LF, Santachiara-Benerecetti AS: Pre-Caucasoid and Caucasoid genetic features of the Indian population, revealed by mtDNA polymorphisms. Am J Hum Genet 1996,59(4):927–934.PubMed
                                  21. Basu A, Mukherjee N, Roy S, Sengupta S, Banerjee S, Chakraborty M, Dey B, Roy M, Roy B, Bhattacharyya N, et al.: Ethnic India: a genomic view, with special reference to peopling and structure. Genome Res 2003,13(10):2277–2290.View ArticlePubMed
                                  22. Yao YG, Kong QP, Bandelt HJ, Kivisild T, Zhang YP: Phylogeographic differentiation of mitochondrial DNA in Han Chinese. Am J Hum Genet 2002,70(3):635–651.View ArticlePubMed
                                  23. Kong QP, Yao YG, Sun C, Bandelt HJ, Zhu CL, Zhang YP: Phylogeny of East Asian mitochondrial DNA lineages inferred from complete sequences. Am J Hum Genet 2003,73(3):671–676.View ArticlePubMed
                                  24. Passarino G, Semino O, Quintana-Murci L, Excoffier L, Hammer M, Santachiara-Benerecetti AS: Different genetic components in the Ethiopian population, identified by mtDNA and Y-chromosome polymorphisms. Am J Hum Genet 1998,62(2):420–434.View ArticlePubMed
                                  25. Hasegawa M, Di Rienzo A, Kocher TD, Wilson AC: Toward a more accurate time scale for the human mitochondrial DNA tree. J Mol Evol 1993,37(4):347–354.View ArticlePubMed
                                  26. Wakeley J: Substitution rate variation among sites in hypervariable region 1 of human mitochondrial DNA. J Mol Evol 1993,37(6):613–623.View ArticlePubMed
                                  27. Quintana-Murci L, Chaix R, Wells S, Behar D, Sayar H, Scozzari R, Rengo C, Al-Zahery N, Semino O, Santachiara-Benerecetti A, et al.: Where West meets East: The complex mtDNA landscape of the Southwest and Central Asian corridor. Am J Hum Genet 2004, 74:827–845.View ArticlePubMed
                                  28. Kivisild T, Rootsi S, Metspalu M, Metspalu E, Parik J, Kaldma K, Usanga E, Mastana S, Papiha S, Villems R: The Genetics of Language and Farming Spread in India. In: Examining the farming/language dispersal hypothesis (Edited by: Bellwood P, Renfrew C). Cambridge: The McDonald Institute for Archaeological Research 2003, 215–222.
                                  29. Cordaux R, Saha N, Bentley G, Aunger R, Sirajuddin S, Stoneking M: Mitochondrial DNA analysis reveals diverse histories of tribal populations from India. Eur J Hum Genet 2003, 3:253–264.View Article
                                  30. Guha B: The racial affinities of the people of India. In: Census of India, 1931, Part III Ethnographical Simla: Government of India Press 1935.
                                  31. Richards M, Rengo C, Cruciani F, Gratrix F, Wilson J, Scozzari R, Macaulay V, Torroni A: Extensive female-mediated gene flow from sub-Saharan Africa into near eastern Arab populations. Am J Hum Genet 2003,72(4):1058–1064.View ArticlePubMed
                                  32. Tambets K, Kivisild T, Metspalu E, Parik J, Kaldma K, Laos S, Tolk H-V, Gölge M, Demirtas H, Geberhiwot T, et al.: The topology of the maternal lineages of the Anatolian and Trans-Caucasus populations and the peopling of the Europe: some preliminary considerations. In: Archaeogenetics: DNA and the population prehistory of Europe (Edited by: Renfrew C, Boyle K). Cambridge: Cambridge University Press 2000, 219–235.
                                  33. Underhill PA, Passarino G, Lin AA, Shen P, Mirazon Lahr M, Foley R, Oefner PJ, Cavalli-Sforza LL: The phylogeography of Y chromosome binary haplotypes and the origins of modern human populations. Ann Hum Genet 2001,65(1):43–62.View ArticlePubMed
                                  34. Reidla M, Kivisild T, Metspalu E, Kaldma K, Tambets K, Tolk H, Parik J, Loogvali E, Derenko M, Malyarchuk B, et al.: Origin and Diffusion of mtDNA Haplogroup X. Am J Hum Genet 2003,73(6):1178–1190.View ArticlePubMed
                                  35. Mountain JL, Hebert JM, Bhattacharyya S, Underhill PA, Ottolenghi C, Gadgil M, Cavalli-Sforza LL: Demographic history of India and mtDNA-sequence diversity. Am J Hum Genet 1995,56(4):979–992.PubMed
                                  36. Herrnstadt C, Elson JL, Fahy E, Preston G, Turnbull DM, Anderson C, Ghosh SS, Olefsky JM, Beal MF, Davis RE, et al.: Reduced-median-network analysis of complete mitochondrial DNA coding-region sequences for the major African, Asian, and European haplogroups. Am J Hum Genet 2002,70(5):1152–1171.View ArticlePubMed
                                  37. Slatkin M, Hudson RR: Pairwise comparisons of mitochondrial DNA sequences in stable and exponentially growing populations. Genetics 1991,129(2):555–562.PubMed
                                  38. Majumder PP: Ethnic populations of India as seen from an evolutionary perspective. J Biosci 2001,26(4 Suppl):533–545.View ArticlePubMed
                                  39. Higham C: Languages and Farming Dispersals: Austroasiatic Languages and Rice Cultivation. In: Examining the farming/language dispersal hypothesis (Edited by: Bellwood P, Renfrew C). Cambridge: The McDonald Institute for Archaeological Research 2003.
                                  40. Finnilä S, Lehtonen MS, Majamaa K: Phylogenetic network for European mtDNA. Am J Hum Genet 2001,68(6):1475–1484.View ArticlePubMed
                                  41. Bermisheva M, Tambets K, Villems R, Khusnutdinova E: Diversity of mitochondrial DNA haplotypes in ethnic populations of the Volga-Ural region of Russia. Mol Biol (Mosk) 2002,36(6):990–1001.View Article
                                  42. Global land environments since the last interglacial:[http://​members.​cox.​net/​quaternary/​]
                                  43. Comas D, Plaza S, Wells RS, Yuldaseva N, Lao O, Calafell F, Bertranpetit J: Admixture, migrations, and dispersals in Central Asia: evidence from maternal DNA lineages. Eur J Hum Genet 2004,12(6):495–504.View ArticlePubMed
                                  44. Papiha SS, Chahal SM, Mastana SS: Variability of genetic markers in Himachal Pradesh, India: variation among the subpopulations. Hum Biol 1996,68(5):629–654.PubMed
                                  45. Passarino G, Semino O, Pepe G, Shrestha SL, Modiano G, Santachiara Benerecetti AS: MtDNA polymorphisms among Tharus of eastern Terai (Nepal). Gene Geogr 1992,6(3):139–147.PubMed
                                  46. Papiha SS: Genetic variation in India. Hum Biol 1996,68(5):607–628.PubMed
                                  47. Singh KS, ed: The Scheduled Tribes. Oxford: Oxford University Press 1997.
                                  48. Papiha SS, Schanfield MS, Chakraborty R: Immunoglobulin allotypes and estimation of genetic admixture among populations of Kinnaur District, Himachal Pradesh, India. Hum Biol 1996,68(5):777–794.PubMed
                                  49. Thangaraj K, Ramana GV, Singh L: Y-chromosome and mitochondrial DNA polymorphisms in Indian populations. Electrophoresis 1999,20(8):1743–1747.View ArticlePubMed
                                  50. Prasad B, Ricker C, Watkins W, Dixon M, Rao B, Naidu J, Jorde L, Bamshad M: Mitochondrial DNA variation in Nicobarese Islanders. Hum Biol 2001,73(5):715–725.View ArticlePubMed
                                  51. Thangaraj K, Singh L, Reddy A, Rao V, Sehgal S, Underhill P, Pierson M, Frame I, Hagelberg E: Genetic affinities of the andaman islanders, a vanishing human population. Current Biology 2003,13(2):86–93.View ArticlePubMed
                                  52. Melton T, Clifford S, Martinson J, Batzer M, Stoneking M: Genetic evidence for the proto-Austronesian homeland in Asia: mtDNA and nuclear DNA variation in Taiwanese aboriginal tribes. Am J Hum Genet 1998,63(6):1807–1823.View ArticlePubMed
                                  53. Yao Y, Nie L, Harpending H, Fu Y, Yuan Z, Zhang Y: Genetic relationship of Chinese ethnic populations revealed by mtDNA sequence diversity. Am J Phys Anthropol 2002,118(1):63–76.View ArticlePubMed
                                  54. Horai S, Murayama K, Hayasaka K, Matsubayashi S, Hattori Y, Fucharoen G, Harihara S, Park KS, Omoto K, Pan IH: mtDNA polymorphism in East Asian Populations, with special reference to the peopling of Japan. Am J Hum Genet 1996,59(3):579–590.PubMed
                                  55. Oota H, Settheetham-Ishida W, Tiwawech D, Ishida T, Stoneking M: Human mtDNA and Y-chromosome variation is correlated with matrilocal versus patrilocal residence. Nat Genet 2001,29(1):20–21.View ArticlePubMed
                                  56. Fucharoen G, Fucharoen S, Horai S: Mitochondrial DNA polymorphisms in Thailand. J Hum Genet 2001,46(3):115–125.View ArticlePubMed
                                  57. Comas D, Calafell F, Mateu E, Perez-Lezaun A, Bosch E, Martinez-Arias R, Clarimon J, Facchini F, Fiori G, Luiselli D, et al.: Trading genes along the silk road: mtDNA sequences and the origin of Central Asian populations. Am J Hum Genet 1998,63(6):1824–1838.View ArticlePubMed
                                  58. Sambrook J, Fritsch EF, Maniatis T: Molecular cloning: a laboratory manual.,. 2 Edition Cold Spring Harbor, NY: Cold Spring Harbor Laboratory Press 1989.
                                  59. Kaessmann H, Heissig F, von Haeseler A, Paabo S: DNA sequence variation in a non-coding region of low recombination on the human X chromosome. Nat Genet 1999,22(1):78–81.View ArticlePubMed
                                  60. Bandelt H-J, Forster P, Sykes BC, Richards MB: Mitochondrial portraits of human populations using median networks. Genetics 1995,141(2):743–753.PubMed
                                  61. Bandelt H-J, Forster P, Röhl A: Median-joining networks for inferring intraspecific phylogenies. Mol Biol Evol 1999,16(1):37–48.PubMed
                                  62. Free Phylogenetic Network Analysis Shareware Software: NETWORK,[http://​www.​fluxus-engineering.​com]
                                  63. Forster P, Harding R, Torroni A, Bandelt H-J: Origin and evolution of Native American mtDNA variation: a reappraisal. Am J Hum Genet 1996,59(4):935–945.PubMed
                                  64. Saillard J, Forster P, Lynnerup N, Bandelt H-J, Nørby S: mtDNA variation among Greenland Eskimos: the edge of the Beringian expansion. Am J Hum Genet 2000,67(3):718–726.View ArticlePubMed
                                  65. Rosenberg MS: PASSAGE. Pattern Analysis, Spatial Statistics, and Geographic Exegesis. Version 1.1. In: Department of Biology, Arizona State University, Tempe, AZ 2001.
                                  66. Rosenberg M: Passage software packet:. [http://​lsweb.​la.​asu.​edu/​rosenberg/​Passage/​]
                                  67. Dupanloup I, Bertorelle G: Inferring admixture proportions from molecular data: extension to any number of parental populations. Mol Biol Evol 2001,18(4):672–675.PubMed

                                  Copyright

                                  © Metspalu et al. 2004

                                  This article is published under license to BioMed Central Ltd. This is an open-access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

                                  Advertisement
